AT-2460-TF-LW100-R
SnapVerified
34MM TRANSDUCER 6000HZ 88DB 12000PF 10V 8MA PIEZO TOP FIRING FLANGE LEAD WIRE
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AT-2460-TF-LW100-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

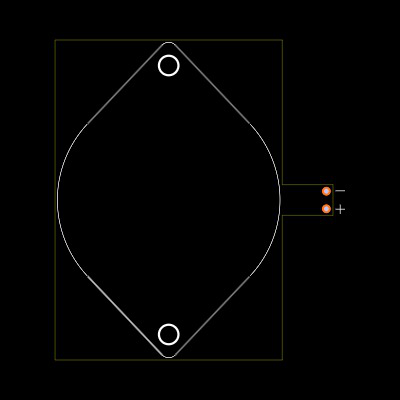

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AT-2460-TF-LW100-R
| Part Name | AT-2460-TF-LW100-R |
| Manufacturer | PUI Audio |
| Tolerance Khz | 0.5 |
| Capacitance | [0.0, 12.0] |
| Lead Time | 130 |
| Resonant Frequency Khz | 6.0 |
| MULT | 50 |
| Status | Active |
| Minimum SPL at 10 cm | 88 |
| SPQ | 50 |
| Weight in grams | 2.4 |
| Tolerance percentage | 30.0 |
| REACH | No |
| SPU | BAG |
| Rated Voltage (V) | 10.0 |
| Additional Features | top firing, flange, lead wire |
| Rated Current Max (A) | 8.0 |
| Exemption | 7C |
| Terminal Material | Lead Wire |
| Country Code | CN |
| Operating Temp. | -30 to 85 |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Operating Voltage Min (V) | 1.0 |
| Device Type | Piezo Buzzer |
| Operating Voltage Max (V) | 30.0 |
| MOQ | 50 |
| Shape | Round |
| Dimmensions in mm. | 34 x 24 x 5.5 |
| Product Link | https://www.puiaudio.com/products/at-2460-tf-lw100-r |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
