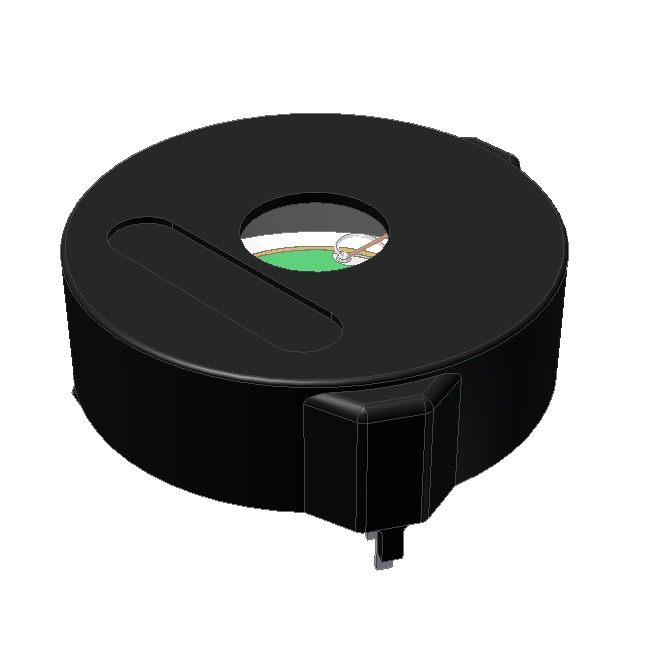

AT-5210-TT-R
55MM TRANSDUCER 1000HZ 105DB 120000PF 18V 10MA PIEZO TOP FIRING THRUHOLE
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AT-5210-TT-R by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

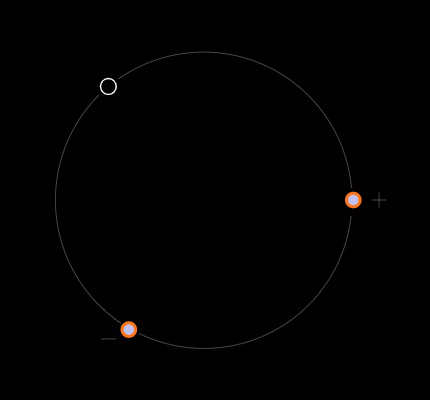

Footprint
No web preview
This Footprint is Available for

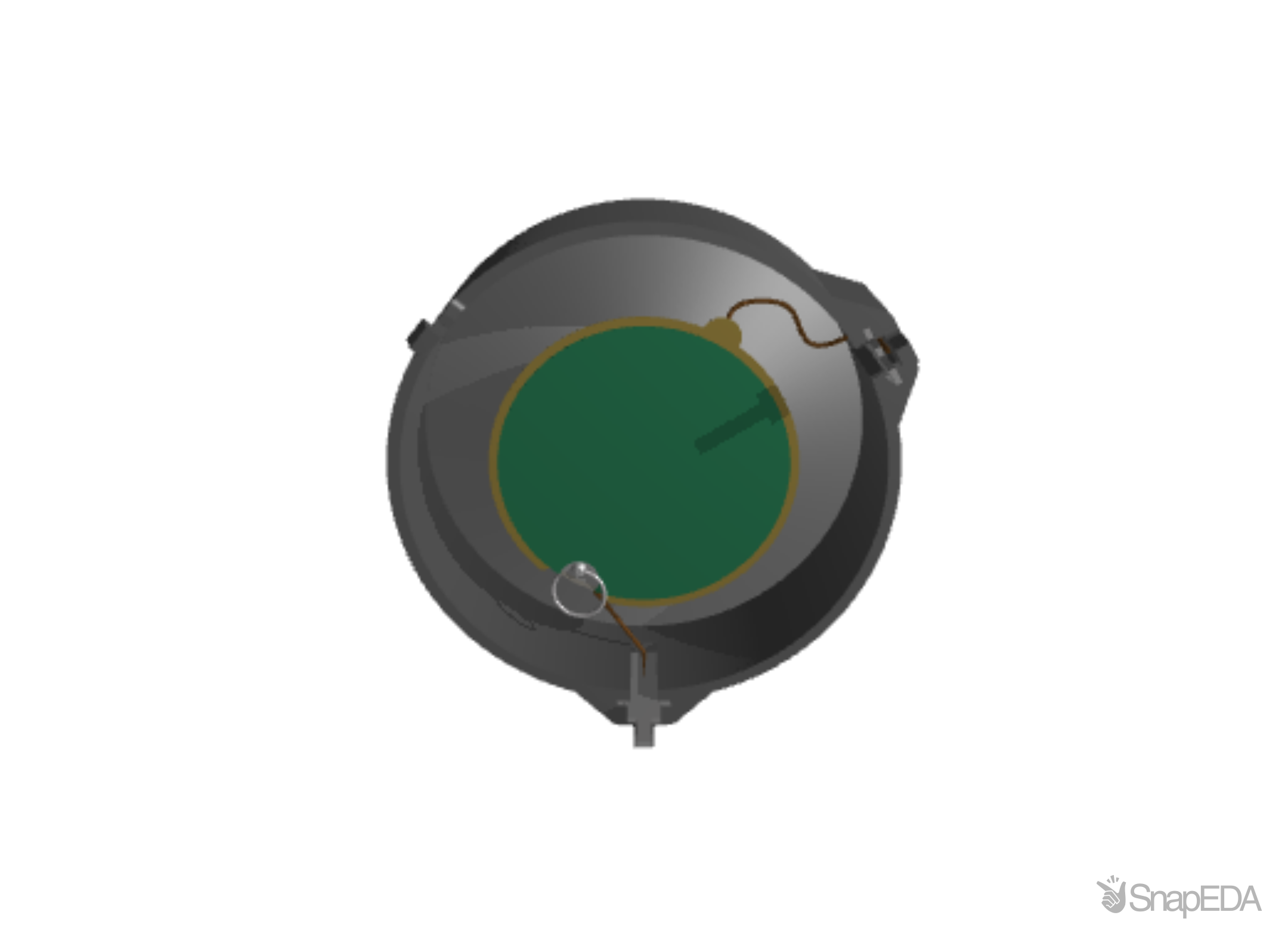

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AT-5210-TT-R
| Part Name | AT-5210-TT-R |
| Manufacturer | PUI Audio |
| Rated Voltage (V) | 18.0 |
| Device Type | Piezo Buzzer |
| Lead Time | 115 |
| Resonant Frequency Khz | 1.0 |
| MULT | 25 |
| Status | Active |
| Minimum SPL at 10 cm | 105 |
| SPQ | 25 |
| Weight in grams | 14.0 |
| Tolerance percentage | 30.0 |
| REACH | No |
| SPU | TRAY |
| Tolerance Khz | 0.2 |
| Additional Features | top firing, thru-hole |
| Rated Current Max (A) | 10.0 |
| Exemption | 7C |
| Terminal Material | Sn Plated Copper |
| Country Code | CN |
| Operating Temp. | -40 to 105 |
| RoHS | Yes |
| HTS Code | 8531.80.9041 |
| Operating Voltage Min (V) | 1.0 |
| Capacitance | [0.0, 120.0] |
| Operating Voltage Max (V) | 60.0 |
| MOQ | 25 |
| Shape | Round |
| Dimmensions in mm. | 54.6 x 51.5 x 23.2 |
| Product Link | https://www.puiaudio.com/products/at-5210-tt-r |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the AT-5210-TT-R by PUI Audio from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Avnet America |
1,850
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS UK |
24
|
|
Visit Site | |
| Rutronik |
8,050
|
|
Visit Site | |
| Sager |
|
|
Visit Site | |
| TME |
27
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the AT-5210-TT-R
If you experienced any issues with the symbol or footprint, please report it.
