AT27C256R-70JU

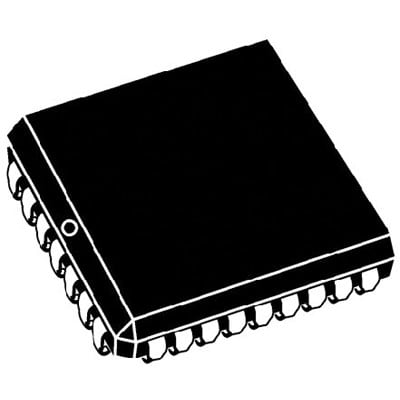

AT27C256R-70JU, OTP EPROM Memory 256kbit 32Kx8 bit 70ns 4.5 to 5.5 V 32-Pin PLCC | Microchip Technology Inc. AT27C256R-70JU
Availability: In Stock
Package Type: PLCC-32
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AT27C256R-70JU by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

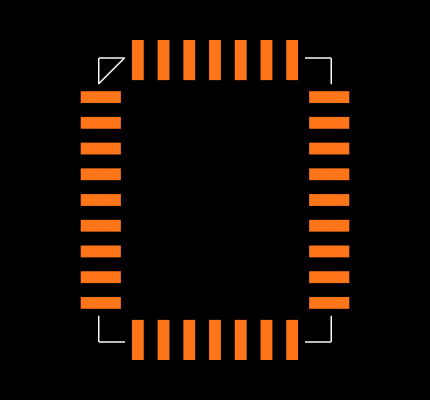

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AT27C256R-70JU
| Part Name | AT27C256R-70JU |
| Manufacturer | Microchip |
| Category | Electronic Components |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 14.04 x 11.5 x 3.17 (mm) |
| Mounting Type | Through Hole |
| Number Of Words | 32K |
| Number Of Bits Per Word | 8 (bit) |
| Typical Operating Supply Voltage (V) | 5 V |
| Organisation | 32K x 8 bit |
| Memory Size | 256 (kbit) |
| Package Type | PLCC |
| Minimum Operating Temperature | -40 °C |
| Maximum Random Access Time | 70 (ns) |
| Maximum Operating Temperature | +85 °C |
| Pin Count | 32 |
| Reprogramming Technique | OTP |
