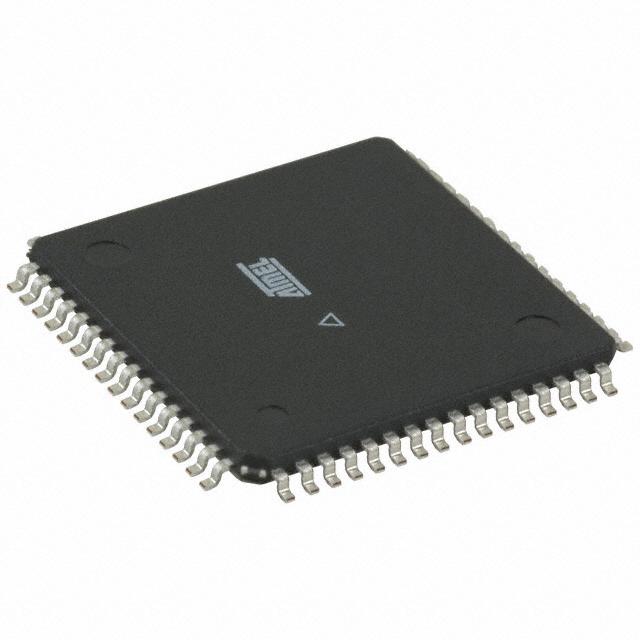

AT32UC3B0256-A2UT
AVR AVR®32 UC3 B Microcontroller IC 32-Bit Single-Core 60MHz 256KB (256K x 8) FLASH 64-TQFP (10x10)
Availability: In Stock
Package Type: TQFP-64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AT32UC3B0256-A2UT by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AT32UC3B0256-A2UT
| Part Name | AT32UC3B0256-A2UT |
| Manufacturer | Microchip |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 10 x 10 x 1.05 (mm) |
| Usb Channels | 1 x Device, 1 x Host |
| Width | 10 (mm) |
| Program Memory Size | 256 kB |
| Number Of Spi Channels | 4 |
| Data Bus Width | 32 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Adcs | 8 x 10 bit |
| Number Of Pwm Units | 1 x 20 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 60 (MHz) |
| Family Name | Atmel AVR |
| Device Core | AVR32UC |
| Length | 10 (mm) |
| Ram Size | 32 kB |
| Pin Count | 64 |
| Pulse Width Modulation | 1 (7 x 20 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Height | 1.05 (mm) |
| Typical Operating Supply Voltage (V) | 3.3 V |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 3 |
