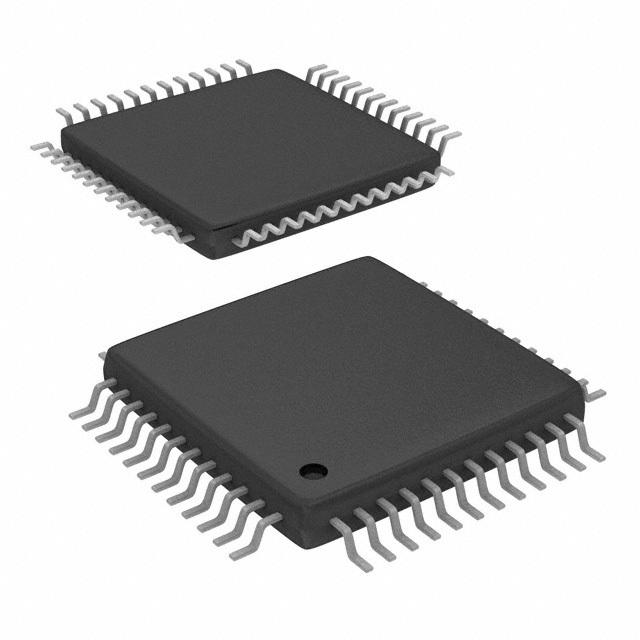

AT32UC3L0256-AUT
AVR AVR®32 UC3 L Microcontroller IC 32-Bit Single-Core 50MHz 256KB (256K x 8) FLASH 48-TQFP (7x7)
Availability: In Stock
Package Type: TQFP-48
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AT32UC3L0256-AUT by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

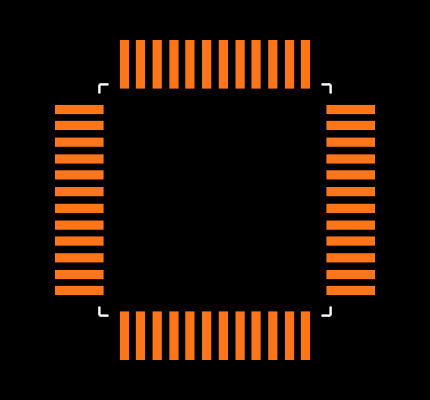

Footprint
No web preview
This Footprint is Available for

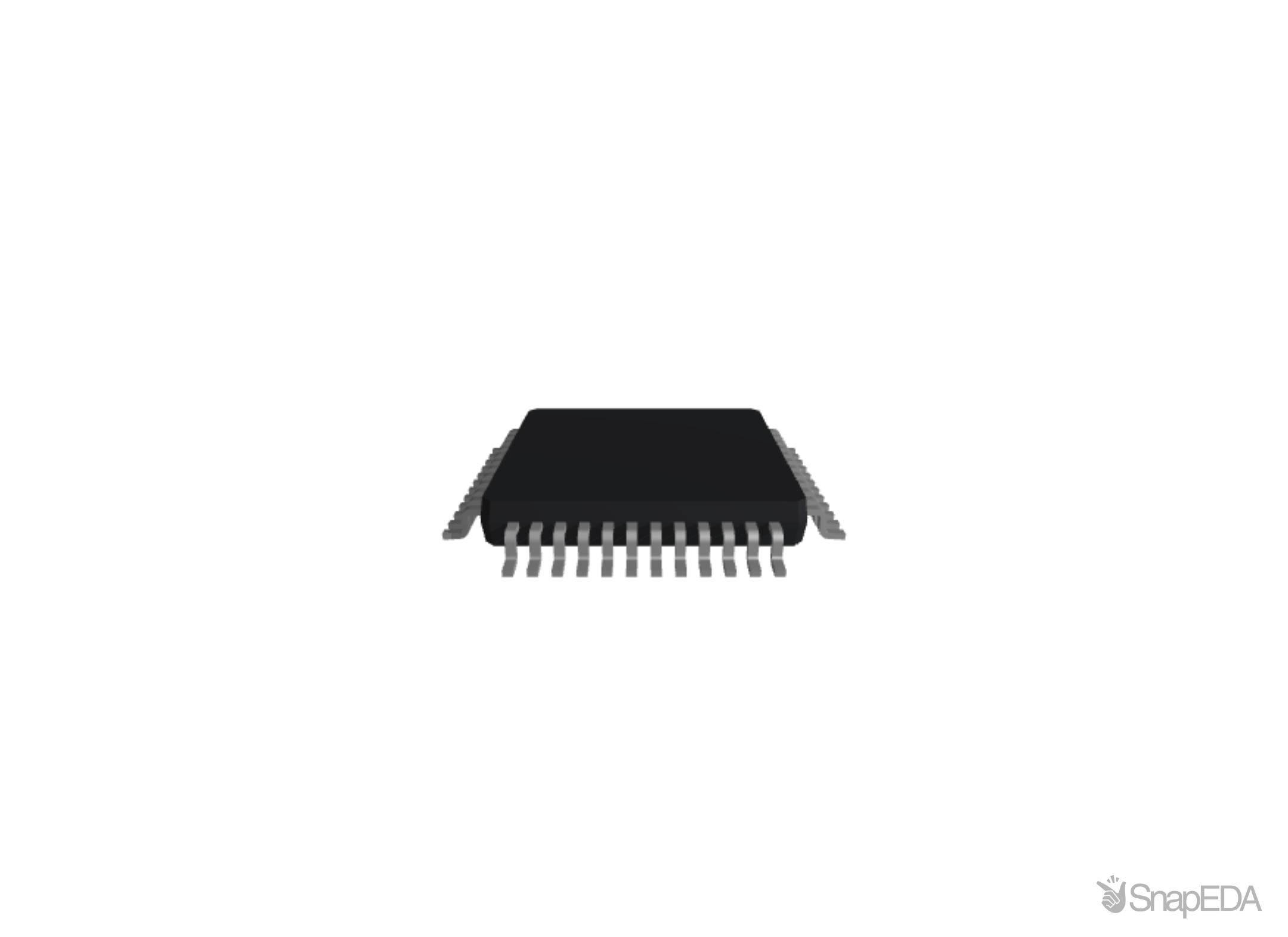

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AT32UC3L0256-AUT
| Part Name | AT32UC3L0256-AUT |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 7 x 7 x 1.05 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 7 (mm) |
| Number Of Can Channels | 0 |
| Program Memory Size | 256 kB |
| Number Of Spi Channels | 5 |
| Data Bus Width | 32 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Maximum Frequency | 50 (MHz) |
| Number Of Pwm Units | 1 x 8 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 8 x 12 bit |
| Family Name | AT32 |
| Device Core | AVR |
| Length | 7 (mm) |
| Usb Channels | 0 |
| Ram Size | 32 kB |
| Pin Count | 48 |
| Pulse Width Modulation | 1 (36 x 8 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 1.05 (mm) |
| Typical Operating Supply Voltage (V) | 3.6 (Maximum) V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 4 |
