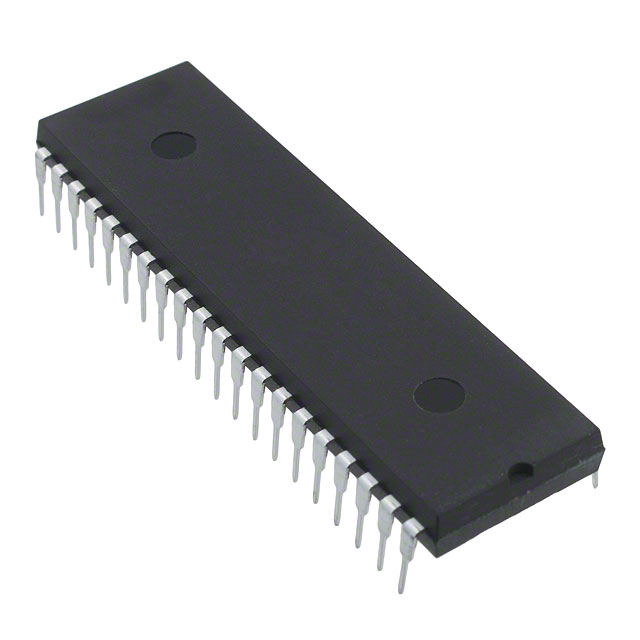

AT89C51RB2-3CSUM
80C51 series Microcontroller IC 8-Bit 60MHz 16KB (16K x 8) FLASH 40-PDIL
Availability: In Stock
Package Type: DIP-40
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AT89C51RB2-3CSUM by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

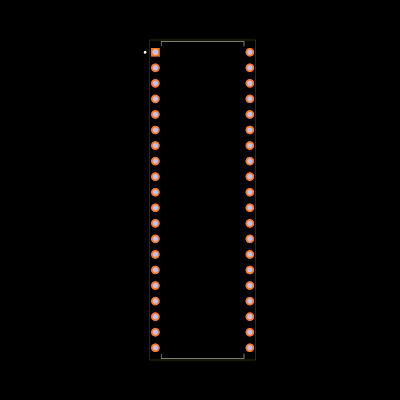

Footprint
No web preview
This Footprint is Available for

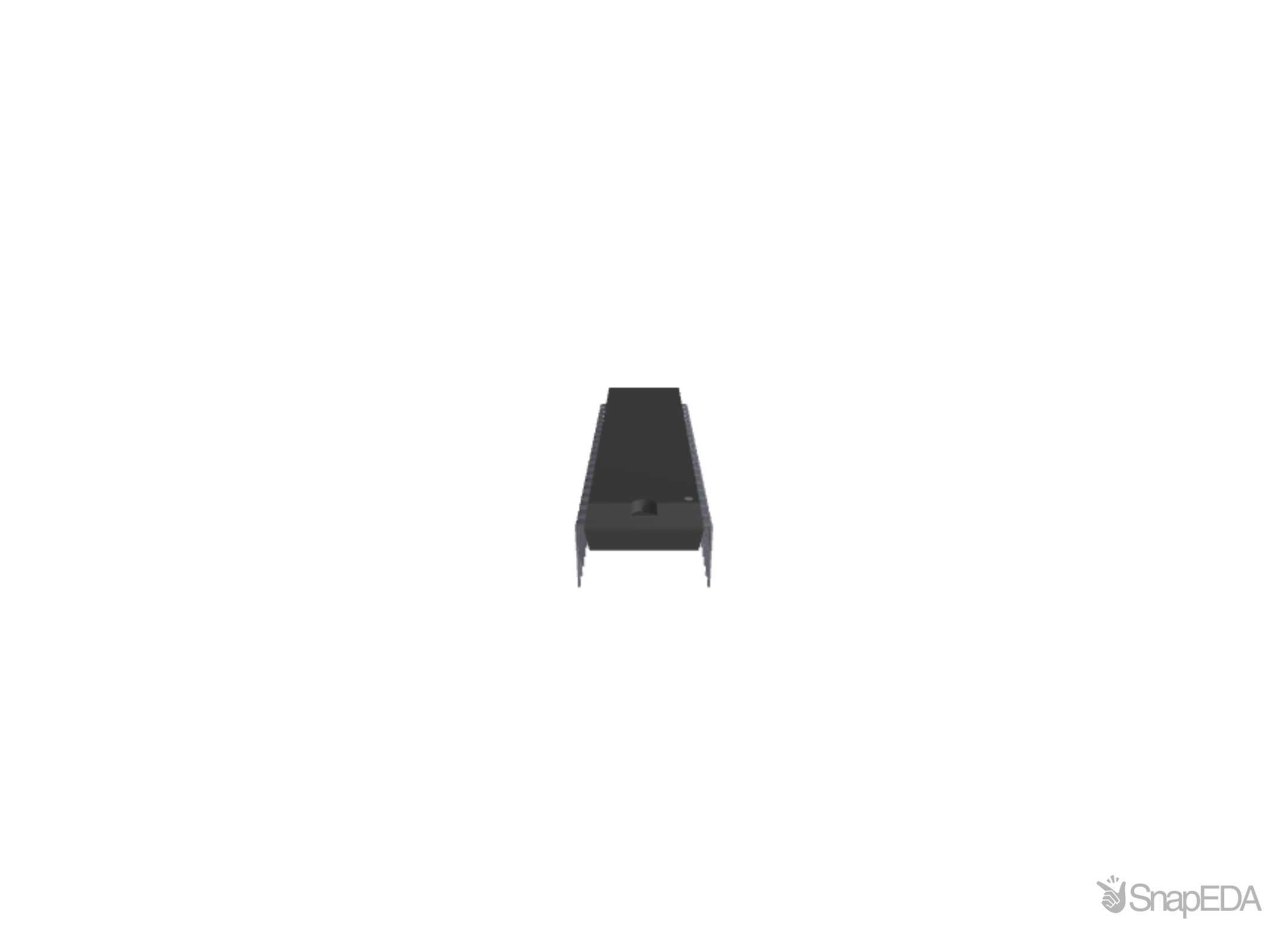

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AT89C51RB2-3CSUM
| Part Name | AT89C51RB2-3CSUM |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 53.21 x 14.73 x 4.95 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 14.73 (mm) |
| Number Of Can Channels | 0 |
| Program Memory Size | 16 kB |
| Number Of Spi Channels | 1 |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | CISC |
| Program Memory Type | Flash |
| Package Type | PDIL |
| Adcs | 0 |
| Number Of Pwm Units | 1 x 8 bit |
| Number Of Adc Units | 0 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 40 MHz, 60 MHz |
| Family Name | AT89 |
| Device Core | 8051 |
| Length | 53.21 (mm) |
| Usb Channels | 0 |
| Ram Size | 1.28 kB |
| Pin Count | 40 |
| Pulse Width Modulation | 1 (5 x 8 bit) |
| Mounting Type | Through Hole |
| Maximum Number Of Ethernet Channels | 0 |
| Height | 4.95 (mm) |
| Typical Operating Supply Voltage (V) | 2.7 → 5.5 V |
| Minimum Operating Temperature | -40 °C |
| Number Of Uart Channels | 1 |
