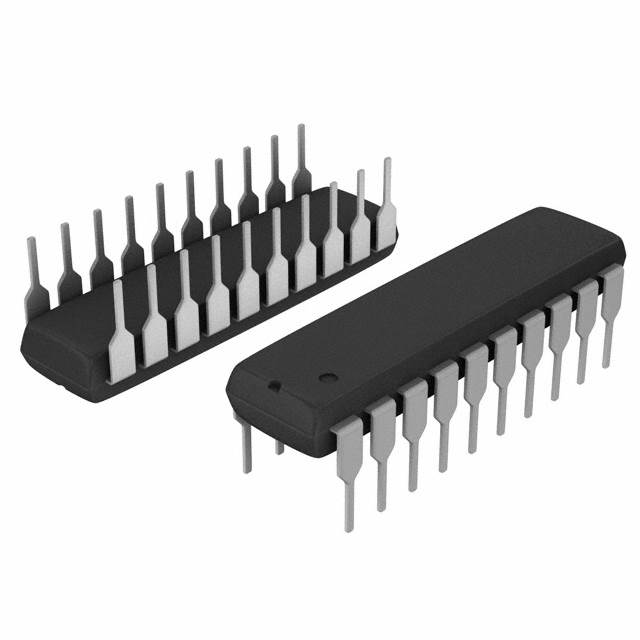

ATF16V8B-15PU
16V8 Programmable Logic Device (PLD) IC 8 Macrocells 20-PDIP
Availability: In Stock
Package Type: DIP-20
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ATF16V8B-15PU by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.

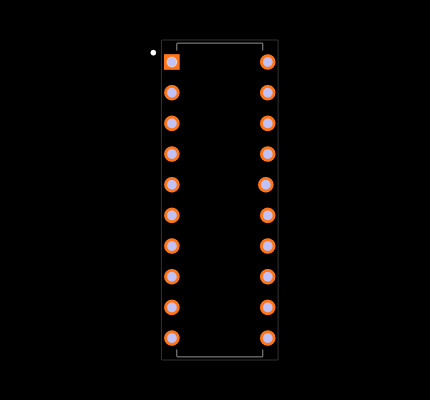

BuildFootprint
No web preview
This Footprint is Available for

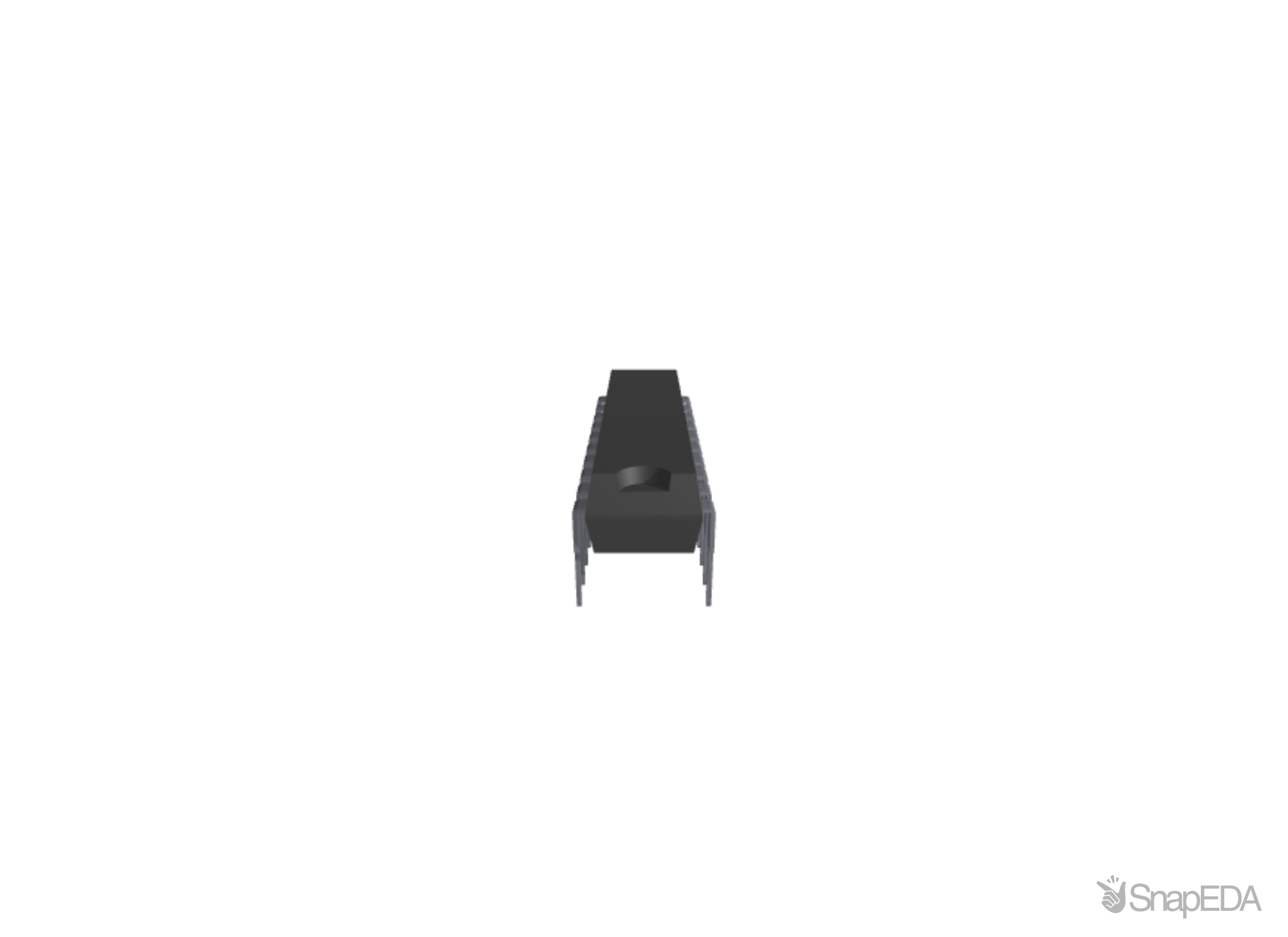

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ATF16V8B-15PU
| Part Name | ATF16V8B-15PU |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Fabrication Technology | CMOS, TTL |
| Dimensions | 26.92 x 7.11 x 4.95 (mm) |
| Maximum Operating Supply Voltage (V) | 5 V |
| Number Of Gates | 150 |
| Number Of User I/Os | 8 |
| Maximum Operating Temperature | +85 °C |
| Family Name | ATF16V8B |
| Length | 26.92 (mm) |
| Re-Programmability Support | Yes |
| Height | 4.95 (mm) |
| Width | 7.11 (mm) |
| Maximum Propagation Delay Time | 15 (ns) |
| Package Type | PDIP |
| Maximum Internal Frequency | 62 (MHz) |
| Minimum Operating Temperature | -40 °C |
| Mounting Type | Through Hole |
| Number Of Macro Cells | 8 |
| Pin Count | 20 |
| Propagation Delay Test Condition | 50 (pF) |
Inventory for the ATF16V8B-15PU by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
8,400
|
|
Visit Site | |
|
★ Featured
|
3,843
|
|
Visit Site | |
| Arrow Europe |
126
|
|
Visit Site | |
| Onlinecomponents |
1,988
|
|
Visit Site | |
| Verical |
90
|
|
Visit Site |
No issues have been reported for the ATF16V8B-15PU
If you experienced any issues with the symbol or footprint, please report it.
