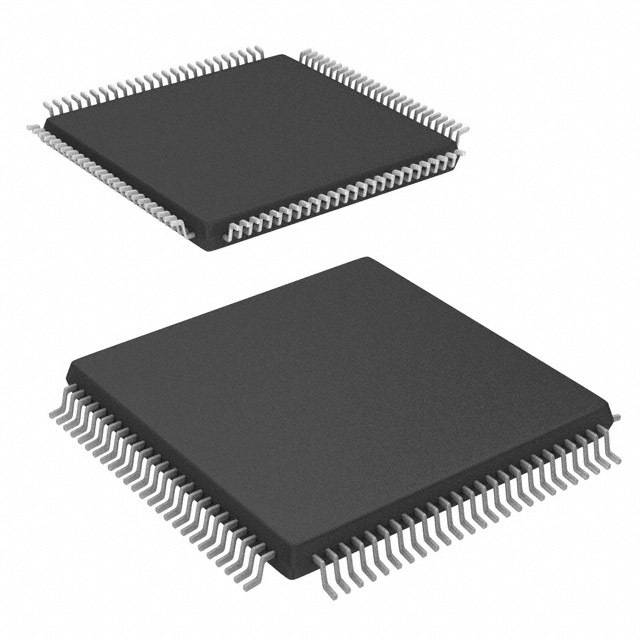

ATMEGA640-16AU
AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 64KB (32K x 16) FLASH 100-TQFP (14x14)
Availability: Out of Stock
Package Type: TQFP-100
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ATMEGA640-16AU by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

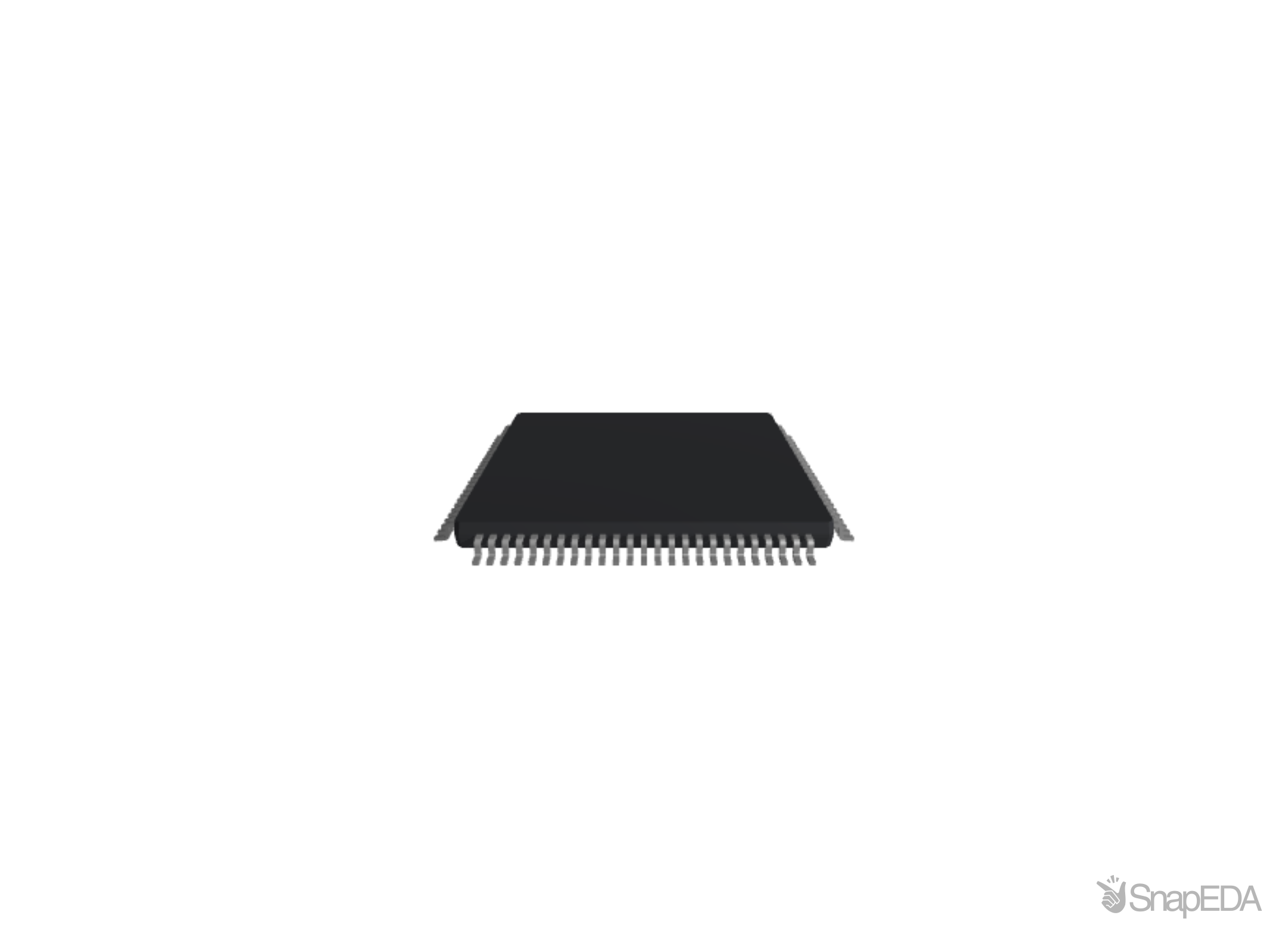

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ATMEGA640-16AU
| Part Name | ATMEGA640-16AU |
| Manufacturer | Microchip |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 14.1 x 14.1 x 1.05 (mm) |
| Program Memory Size | 64 kB |
| Usb Channels | 0 |
| Width | 14.1 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Distrelec Product Id | 30113660 |
| Number Of Spi Channels | 5 |
| Ram Size | 8 kB |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | TQFP |
| Adcs | 16 x 10 bit |
| Number Of Pwm Units | 1 x 8 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 16 (MHz) |
| Family Name | ATmega |
| Device Core | AVR |
| Length | 14.1 (mm) |
| Number Of Ethernet Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 100 |
| Pulse Width Modulation | 1 (4 x 8 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 1 |
| Height | 1.05 (mm) |
| Typical Operating Supply Voltage (V) | 2.7 → 5.5 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 1 |
| Number Of Uart Channels | 4 |
