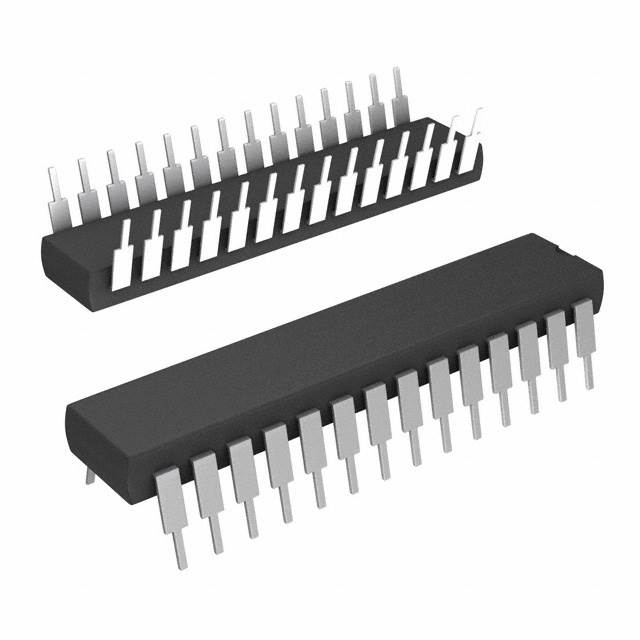

ATMEGA8A-PU
AVR AVR® ATmega Microcontroller IC 8-Bit 16MHz 8KB (4K x 16) FLASH 28-PDIP
Availability: Out of Stock
Package Type: PDIP-28
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ATMEGA8A-PU by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ATMEGA8A-PU
| Part Name | ATMEGA8A-PU |
| Manufacturer | Microchip |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 34.79 x 7.49 x 4.06 (mm) |
| Usb Channels | 0 |
| Width | 7.49 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 8 kB |
| Number Of Spi Channels | 1 |
| Ram Size | 1 kB |
| Data Bus Width | 8 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | PDIP |
| Adcs | 6 x 10 bit |
| Number Of Pwm Units | 1 |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +85 °C |
| Maximum Frequency | 16 (MHz) |
| Family Name | ATmega |
| Device Core | AVR |
| Length | 34.79 (mm) |
| Number Of Ethernet Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 28 |
| Pulse Width Modulation | 1 (3 Channel) |
| Mounting Type | Through Hole |
| Number Of I2C Channels | 1 |
| Height | 4.06 (mm) |
| Typical Operating Supply Voltage (V) | 2.7 → 5.5 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 1 |
| Number Of Uart Channels | 1 |
