ATSAME70Q21B-CFN
ARM® Cortex®-M7 SAM E70 Microcontroller IC 32-Bit Single-Core 300MHz 2MB (2M x 8) FLASH 144-UFBGA (6x6)
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ATSAME70Q21B-CFN by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

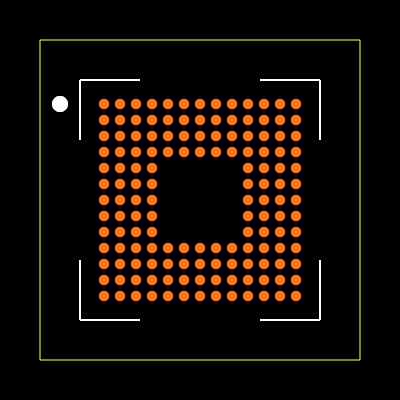

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ATSAME70Q21B-CFN
| Part Name | ATSAME70Q21B-CFN |
| Manufacturer | Microchip Technology |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 6 x 6 x 0.6 (mm) |
| Number Of Ethernet Channels | 1 |
| Width | 6 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 2 |
| Program Memory Size | 2048 kB |
| Automotive Standard | AEC-Q100 |
| Number Of Spi Channels | 2 |
| Number Of Lin Channels | 0 |
| Data Bus Width | 32 (bit) |
| Instruction Set Architecture | DSP |
| Program Memory Type | Flash |
| Package Type | UFBGA |
| Maximum Frequency | 300 (MHz) |
| Number Of Pwm Units | 2 x 16 bit |
| Number Of Adc Units | 1 |
| Maximum Operating Temperature | +105 °C |
| Adcs | 24 x 12 bit |
| Family Name | SAME70 |
| Device Core | ARM Cortex M7 |
| Length | 6 (mm) |
| Usb Channels | 1 |
| Ram Size | 384 kB |
| Pin Count | 144 |
| Pulse Width Modulation | 2 (4 x 16 bit) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 0.6 (mm) |
| Typical Operating Supply Voltage (V) | 1.7 → 3.6 V |
| Maximum Number Of Ethernet Channels | 1 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 3 |
| Number Of Uart Channels | 5 |
