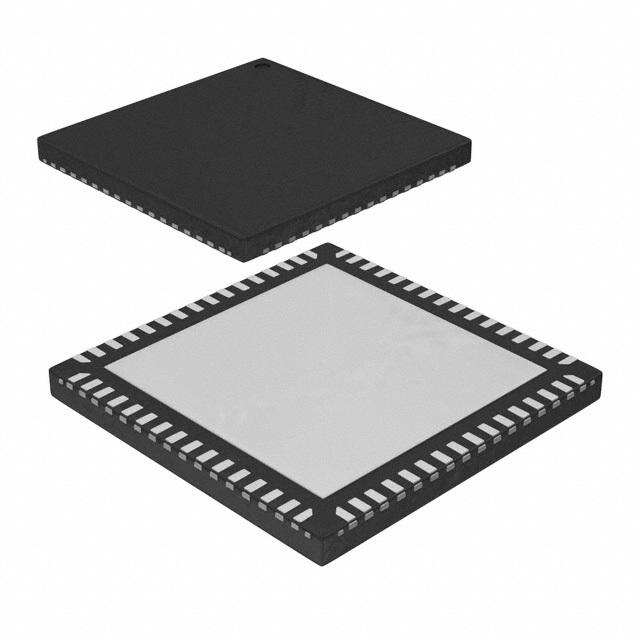

ATXMEGA256A3-MH
AVR AVR® XMEGA® A3 Microcontroller IC 8/16-Bit 32MHz 256KB (128K x 16) FLASH 64-QFN (9x9)
Availability: In Stock
Package Type: QFN-64
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the ATXMEGA256A3-MH by Microchip and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

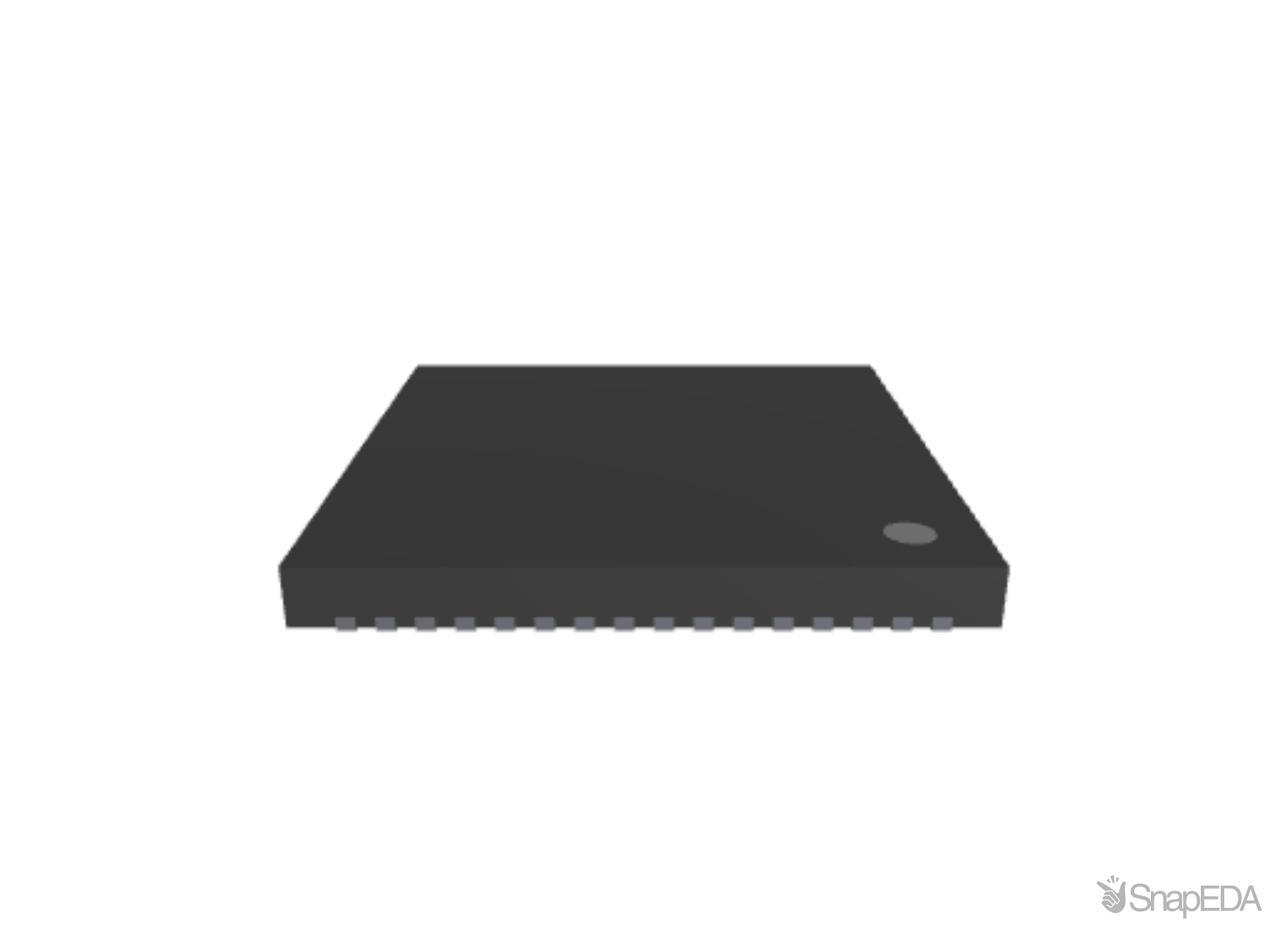

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the ATXMEGA256A3-MH
| Part Name | ATXMEGA256A3-MH |
| Manufacturer | Microchip |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 9.1 x 9.1 x 0.95 (mm) |
| Number Of Ethernet Channels | 0 |
| Width | 9.1 (mm) |
| Number Of Pci Channels | 0 |
| Number Of Can Channels | 0 |
| Program Memory Size | 256 + 8 kB |
| Number Of Spi Channels | 10 |
| Ram Size | 16 kB |
| Data Bus Width | 8 bit, 16 (bit) |
| Instruction Set Architecture | RISC |
| Program Memory Type | Flash |
| Package Type | QFN |
| Maximum Frequency | 32 (MHz) |
| Number Of Pwm Units | 1 |
| Number Of Adc Units | 2 |
| Maximum Operating Temperature | +85 °C |
| Adcs | 8 x 12 bit |
| Family Name | AVR XMEGA A3 |
| Device Core | AVR |
| Length | 9.1 (mm) |
| Usb Channels | 0 |
| Number Of Lin Channels | 0 |
| Pin Count | 64 |
| Pulse Width Modulation | 1 (22 Channel) |
| Mounting Type | Surface Mount |
| Number Of I2C Channels | 2 |
| Height | 0.95 (mm) |
| Typical Operating Supply Voltage (V) | 1.6 → 3.6 V |
| Maximum Number Of Ethernet Channels | 0 |
| Minimum Operating Temperature | -40 °C |
| Number Of Usart Channels | 7 |
| Number Of Uart Channels | 7 |
Inventory for the ATXMEGA256A3-MH by Microchip from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
190
|
|
Visit Site | |
| Avnet America |
|
|
Visit Site | |
| Farnell UK |
|
|
Visit Site | |
| Microchip Technology Inc |
|
|
Visit Site | |
| Newark |
|
100 x $10.08
|
Visit Site | |
| Onlinecomponents |
420
|
|
Visit Site | |
| RS UK |
|
|
Visit Site | |
| Verical |
420
|
|
Visit Site | |
| element14 Singapore |
|
|
Visit Site |
No issues have been reported for the ATXMEGA256A3-MH
If you experienced any issues with the symbol or footprint, please report it.
