AV1921E712Q04
SnapVerified
Pushbutton Alchoswitch AV19, DPL 5A Move Ring LED Blue 12V, Anti-Vandal Series | TE Connectivity AV1921E712Q04
Availability: In Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AV1921E712Q04 by TE Connectivity and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

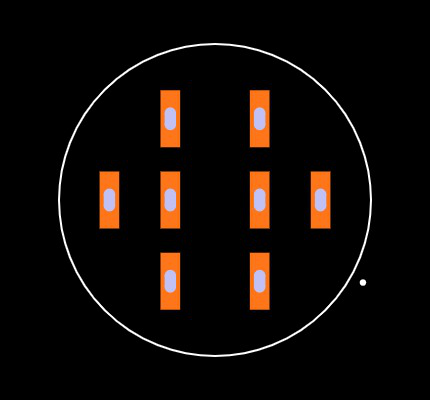

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AV1921E712Q04
| Part Name | AV1921E712Q04 |
| Manufacturer | TE Connectivity |
| Category | Switches |
| Operating Function | Push-On/Push-Off |
| Actuator Profile | Flush |
| Actuator Style | Round |
| Bushing Length | 19 |
| Illuminated | Yes |
| Switch Type | Pushbutton |
| Contact Current Rating (A) | 5 |
| TE Internal Number | 7-2213767-7 |
| Snap Action | Without |
| Case Material | PBT |
| Dust Proof | Yes |
| Product Type | Switch |
| Support Bracket | Without |
| Voltage Rating (V) | 250 |
| Tactile | No |
| Configuration (Pole-Throw) | Double Pole - Double Throw |
| Process Sealed | Yes |
| RoHS | True |
| Detent Style | Audible |
| Mounting Angle | Vertical |
| Mounting Type | Panel |
| Number of Actuators | Single |
| Termination Type | Wire Lugs |
| Bushing Style | Threaded |
| ESD Grounding Terminal | Without |
| Switch Contact Plating Material | Silver |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
Inventory for the AV1921E712Q04 by TE Connectivity from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
189
|
|
Visit Site | |
| Mouser |
|
|
Visit Site | |
| Newark |
34
|
|
Visit Site | |
| Onlinecomponents |
100
|
|
Visit Site | |
| RS UK |
53
|
1 x $20.69
|
Visit Site | |
| TE Store |
189
|
|
Visit Site | |
| TTI Americas |
|
|
Visit Site | |
| Verical |
100
|
|
Visit Site |
No issues have been reported for the AV1921E712Q04
