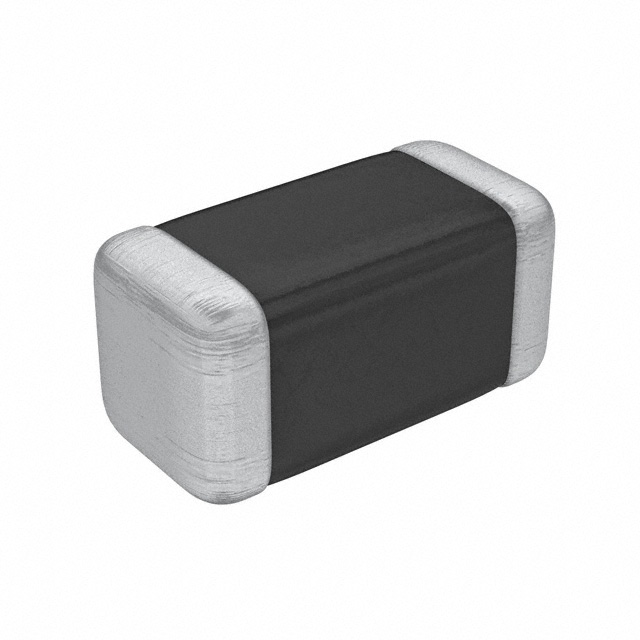

AVR-M1608C120MT2AB
12 V 15 A Varistor 1 Circuit Surface Mount, MLCV 0603 (1608 Metric)
Availability: Out of Stock
Package Type: 0603
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AVR-M1608C120MT2AB by TDK Corporation and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AVR-M1608C120MT2AB
| Part Name | AVR-M1608C120MT2AB |
| Manufacturer | TDK |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | |
| Varistor Voltage (V) | 12 (V) |
| Clamping Voltage (V) | 20 (V) |
| Dimensions | 1.6 x 0.8 x 0.8 (mm) |
| Package Case | 0603 (1608M) |
| Series | AVR |
| Energy | 0.06 (J) |
| Material | Metal |
| Length | 1.6 (mm) |
| Thickness | 0.8 (mm) |
| Capacitance | 400 (pF) |
| Depth | 0.8 (mm) |
| Maximum Surge Current (A) | 15 (A) |
| Clamping Current (A) | 2 (A) |
| Maximum Dc Voltage Rating (V) | 7.5 (V) |
