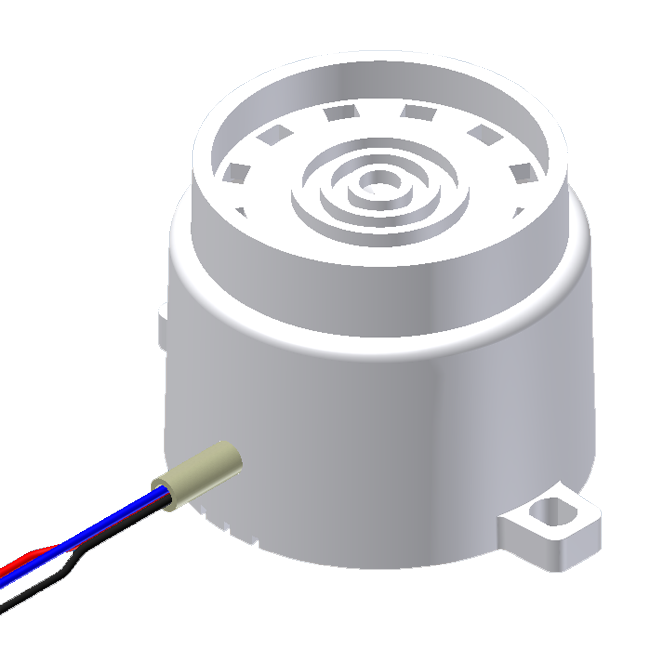

AW-10FW-NSVC
60MM SIREN 24V 92DB IP65 LEAD WIRE WHITE FLANGE
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AW-10FW-NSVC by PUI Audio and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

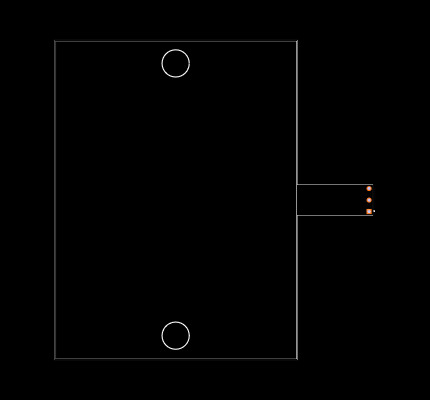

Footprint
No web preview
This Footprint is Available for

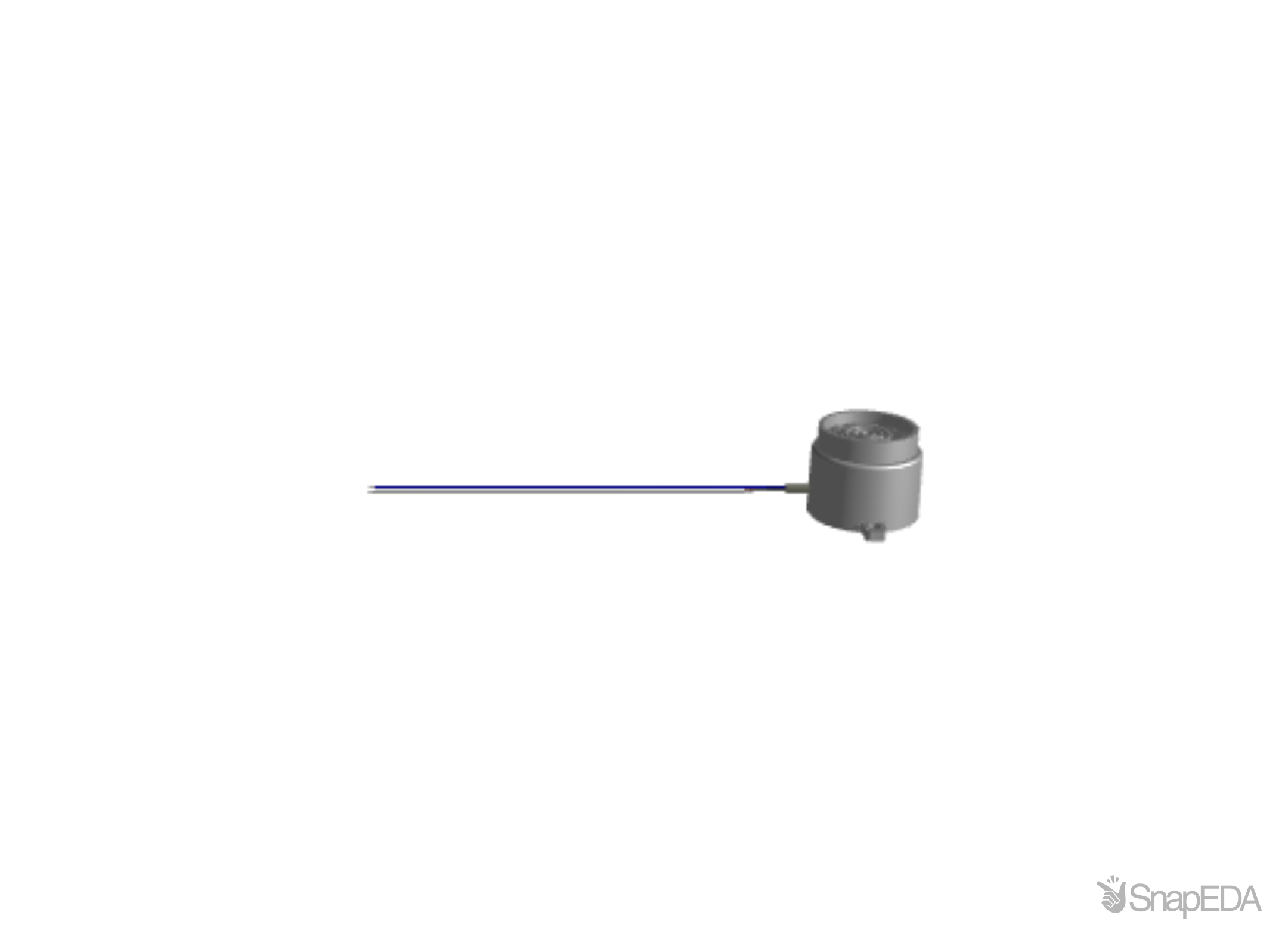

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AW-10FW-NSVC
| Part Name | AW-10FW-NSVC |
| Manufacturer | PUI Audio |
| SPL at 10 cm | 92.0 |
| Rated Voltage (V) | 24.0 |
| Device Type | Siren |
| Lead Time | 38 |
| MULT | 4 |
| Status | Active |
| SPQ | 4 |
| Weight in grams | 80.0 |
| REACH | Yes |
| SPU | BOX |
| Additional Features | white, flange |
| Rated Current Max (A) | 35.0 |
| IP Rating | IP 65 |
| Terminal Material | Lead Wire |
| Country Code | UK |
| Operating Temp. | -25 to 70 |
| RoHS | Yes |
| HTS Code | 8531.10.0049 |
| Tone or Pulse Rate | Multiple |
| Operating Voltage Min (V) | 9.0 |
| Operating Voltage Max (V) | 28.0 |
| MOQ | 52 |
| Shape | Round |
| Dimmensions in mm. | 60 x 53 x 43 |
| Product Link | https://puiaudio.com/product/indicators/aw-10fw-nsvc |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
