AX4F

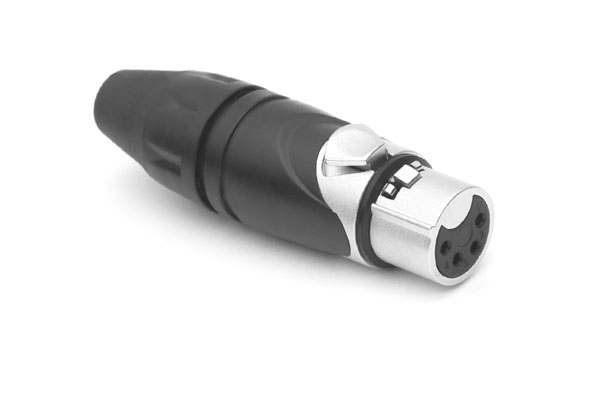

4 Pole XLR Female Cable Connector, Nickel Finish
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the AX4F by Amphenol and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the AX4F
| Part Name | AX4F |
| Manufacturer | Amphenol Audio |
| Category | Connectors |
| Flyer Link | https://www.amphenol-sine.com/pdf/catalog/CAT-AUDIO.pdf |
| Part Sub Series | XLR, AX |
| Product Line | Audio & Entertainment |
| Product Type | Connectors |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Drawing/Datasheet | Drawing/Datasheet |
| Current Rating (A) | 15 (A) |
| Mounting Type | Cable Mount |
| Voltage Rating (V) | 133 V |
| Gender | Female |
| Colour | Black |
| Ip Rating | IP40 |
| Connector Type | XLR |
| Contact Plating | Gold |
| Number Of Contacts | 4 |
| Body Orientation | Straight |
No issues have been reported for the AX4F
