B32520C0105K189
1 µF Film Capacitor 40V 63V Polyester, Polyethylene Terephthalate (PET), Metallized - Stacked Radial
Availability: Out of Stock
Package Type: POWERSO-36-36
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B32520C0105K189 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

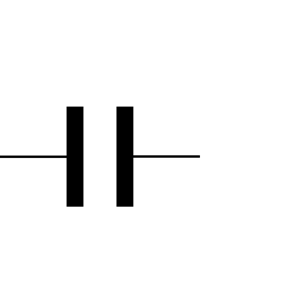

Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B32520C0105K189
| Part Name | B32520C0105K189 |
| Manufacturer | EPCOS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Dimensions | 10 x 5 x 10.5 (mm) |
| Lead Diameter | 0.5 (mm) |
| Tolerance | ±10 (%) |
| Series | B32520 |
| Length | 10 (mm) |
| Height | 10.5 (mm) |
| Capacitance | 1 (µF) |
| Depth | 5 (mm) |
| Voltage (V) | 40 V ac, 63 V dc |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Through Hole |
| Lead Pitch | 7.5 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Terminal Type | Through Hole |
| Dielectric | Polyester |
