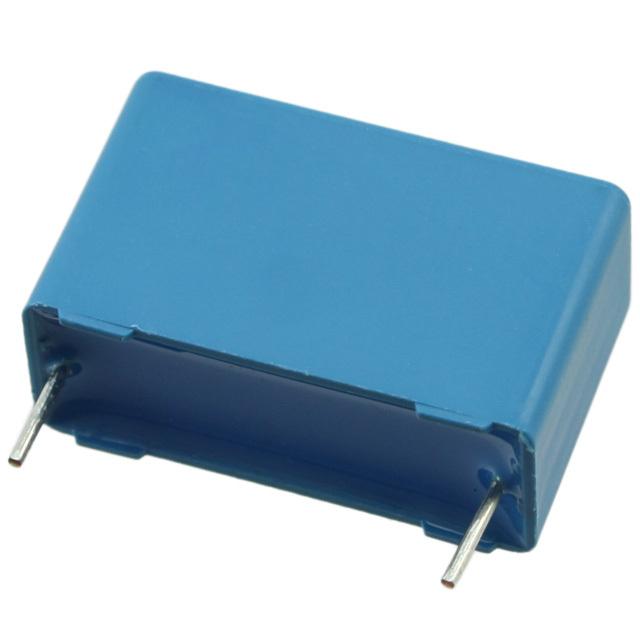

B32523Q6105J000
1 µF Film Capacitor 200V 400V Polyester, Polyethylene Terephthalate (PET), Metallized Radial
Availability: In Stock
Package Type: RADIAL
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B32523Q6105J000 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B32523Q6105J000
| Part Name | B32523Q6105J000 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Dimensions | 10.5 x 16.5 x 26.5 (mm) |
| Lead Diameter | 0.8 (mm) |
| Series | B32523 |
| Depth | 10.5 (mm) |
| Height | 16.5 (mm) |
| Capacitance | 1 (µF) |
| Length | 26.5 (mm) |
| Voltage (V) | 200 V ac, 400 V dc |
| Minimum Operating Temperature | -55 (°C) |
| Mounting Type | Through Hole |
| Lead Pitch | 22.5 (mm) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±5 (%) |
| Terminal Type | Through Hole |
| Dielectric | Polyester |
Inventory for the B32523Q6105J000 by EPCOS from major distributors.
