B3B-PH-SM4-TB
Connector Header Surface Mount 3 position 0.079" (2.00mm)
Availability: Out of Stock
Package Type: NON STANDARD-3
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3B-PH-SM4-TB by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

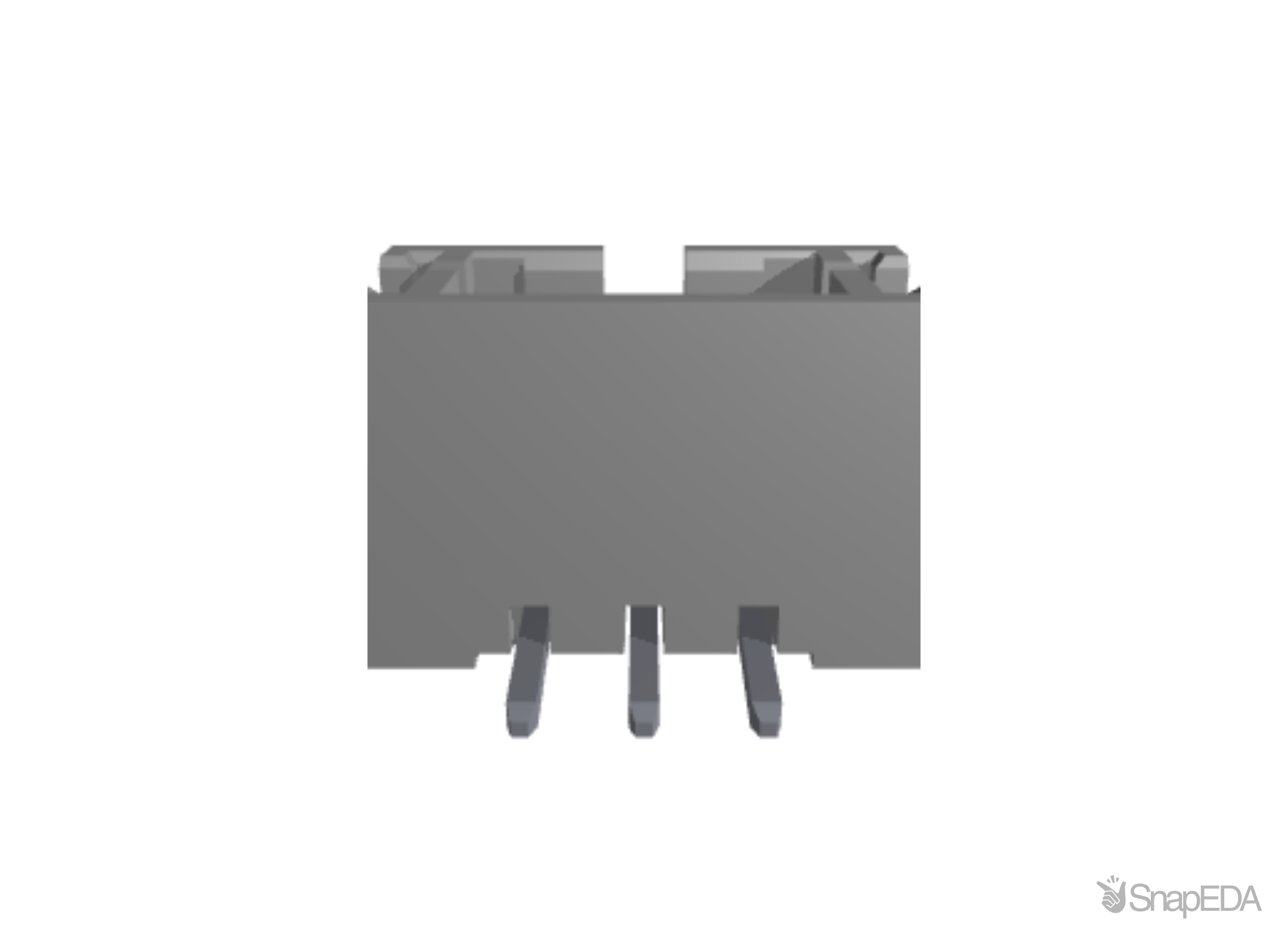

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3B-PH-SM4-TB
| Part Name | B3B-PH-SM4-TB |
| Manufacturer | JST Sales |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 2.0 (A) |
| Contact Plating | Tin |
| Mounting Type | Surface Mount |
| Voltage Rating (V) | 100.0 V |
| Series | PH |
| Body Orientation | Straight |
| Pitch | 2.0 (mm) |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Distrelec Product Id | 30424015 |
| Number Of Contacts | 3 |
| Contact Material | Copper Alloy |
