B3F-1070

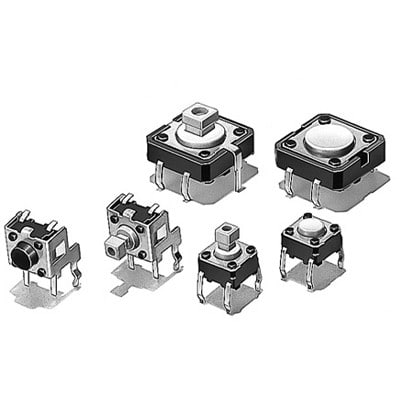

SWITCH,TACTILE,KEYSWITCH,Round Projected ACTUATOR,THROUGH HOLE TERMINAL,100G | Omron Electronic Components B3F-1070
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3F-1070 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

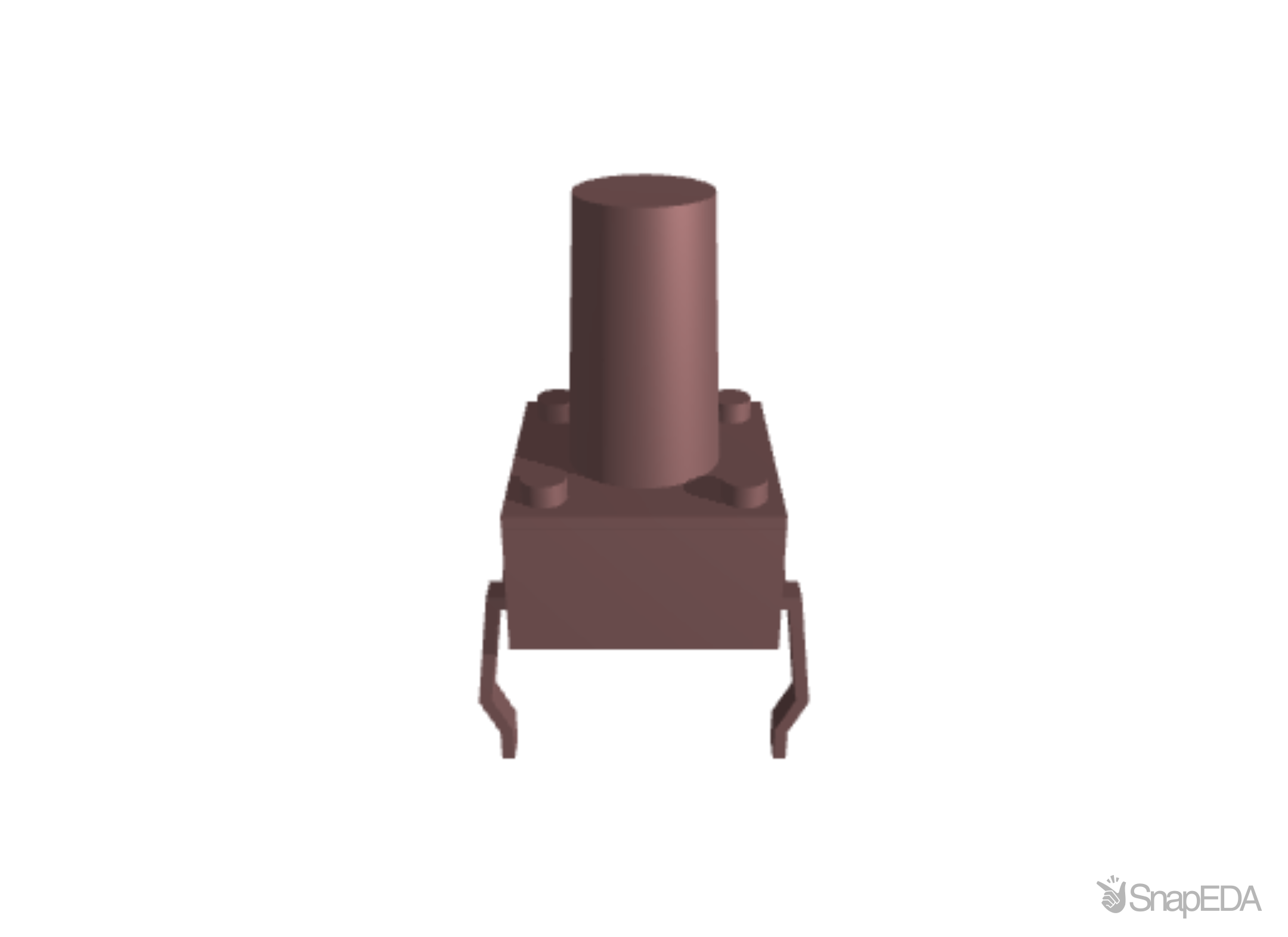

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3F-1070
| Part Name | B3F-1070 |
| Manufacturer | Omron Electronics |
| Category | Switches |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 0.98 N |
| Actuator Length | 6.1 (mm) |
| Dimensions | 6 x 6 x 9.5 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -25 → +70 (°C) |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Minimum Operating Temperature | -25 (°C) |
| Contact Configuration | SPST |
| Width | 6 (mm) |
| Length | 6 (mm) |
| Actuator Type | Plunger |
| Mechanical Life | 1000000 (Operations) |
| Height | 9.5 (mm) |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Through Hole |
| Contact Material | Gold Plated |
