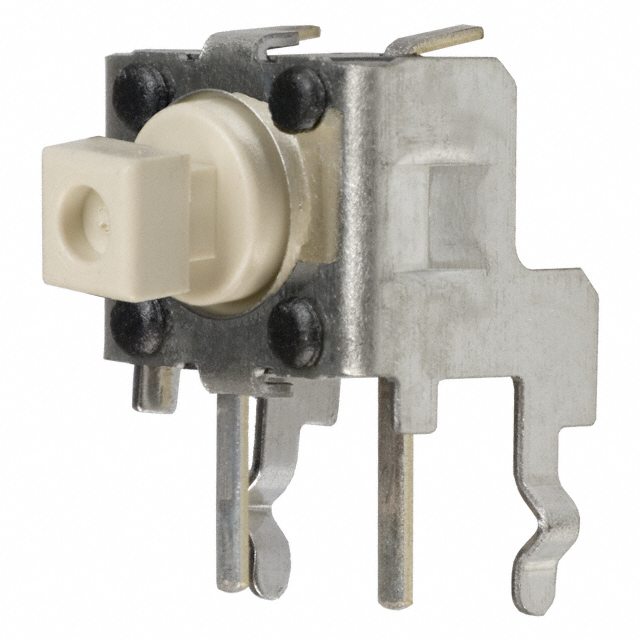

B3F-3150
Tactile Switch SPST-NO Side Actuated Through Hole, Right Angle
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3F-3150 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3F-3150
| Part Name | B3F-3150 |
| Manufacturer | Omron Electronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 0.98 N |
| Actuator Colour | Ivory |
| Dimensions | 6.25 x 7.3 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -25 → +70 (°C) |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Minimum Operating Temperature | -25 (°C) |
| Contact Configuration | SPST |
| Width | 7.3 (mm) |
| Length | 6.25 (mm) |
| Actuator Type | Plunger |
| Mechanical Life | 1000000 (Operations) |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Through Hole |
| Contact Material | Gold Plated |
No issues have been reported for the B3F-3150
