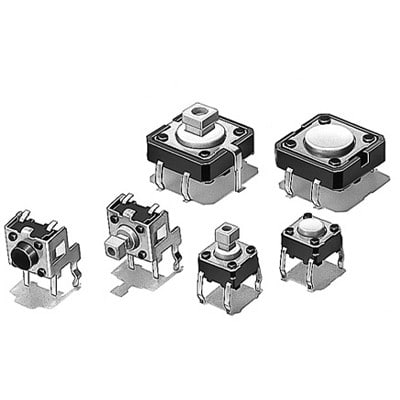

B3F-4000
Switch,Flux tight Mechanical Keyswitch,50MA@24VDC, No Ground Term.,Flat Plung. | Omron Electronic Components B3F-4000
Availability: Out of Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3F-4000 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
2D Model
The 2D model for this
part is not available

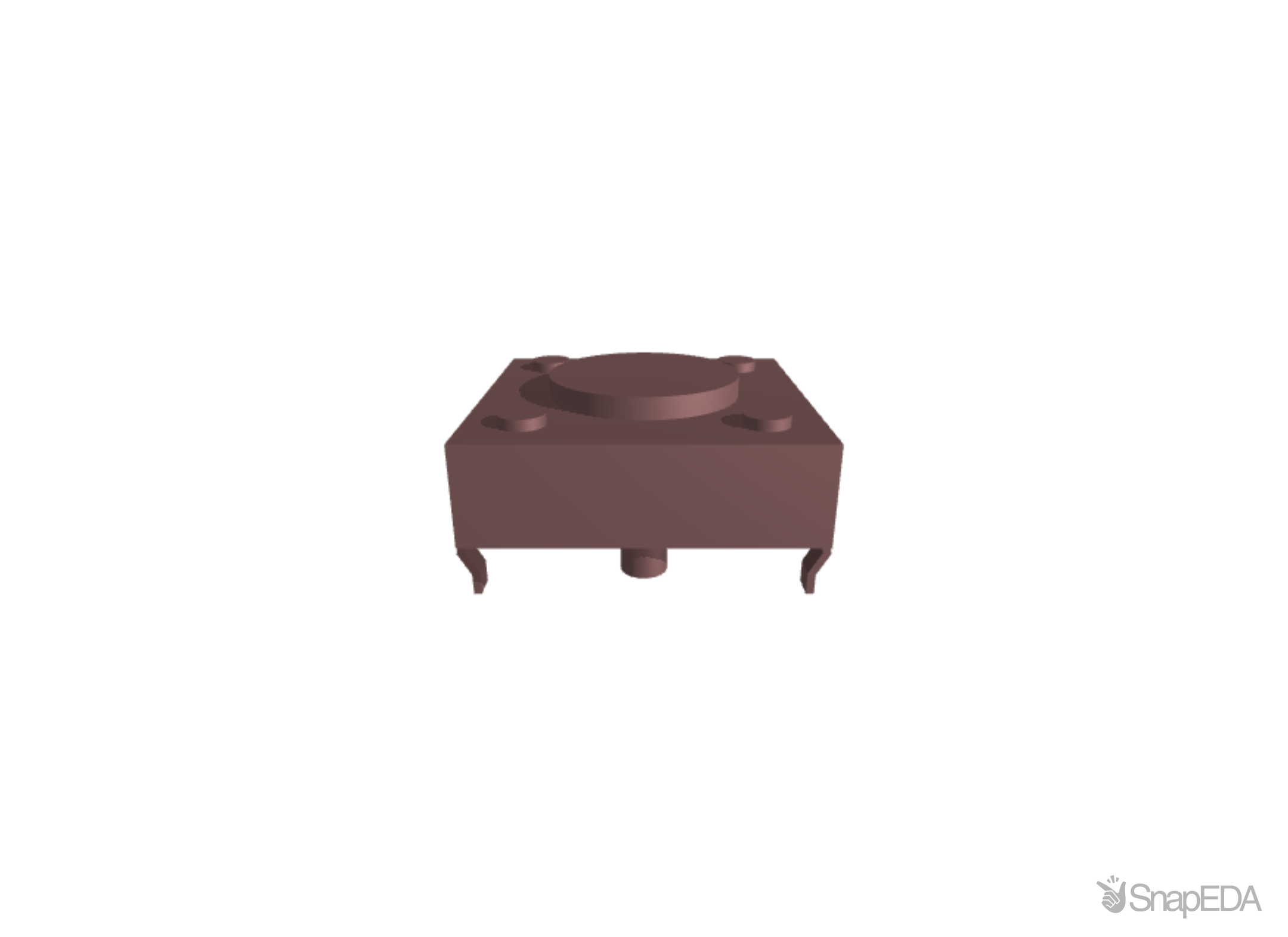

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3F-4000
| Part Name | B3F-4000 |
| Manufacturer | Omron Electronics |
| Category | Switches |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 1.27 N |
| Actuator Length | 0.8 (mm) |
| Dimensions | 12 x 12 x 4.3 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -25 → +70 (°C) |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Minimum Operating Temperature | -25 (°C) |
| Height | 4.3 (mm) |
| Width | 12 (mm) |
| Length | 12 (mm) |
| Actuator Type | Plunger |
| Actuator Colour | Ivory |
| Mechanical Life | 3000000 (Operations) |
| Contact Configuration | SPST |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Through Hole |
| Contact Material | Gold Plated |
No issues have been reported for the B3F-4000
If you experienced any issues with this part, please report it.
