B3F-5051

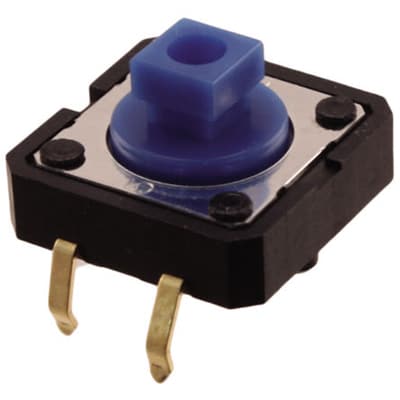

Blue Plunger Tactile Switch, SPST-NO 0.05 A@ 24 V dc 3mm | Omron Electronic Components B3F-5051
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3F-5051 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

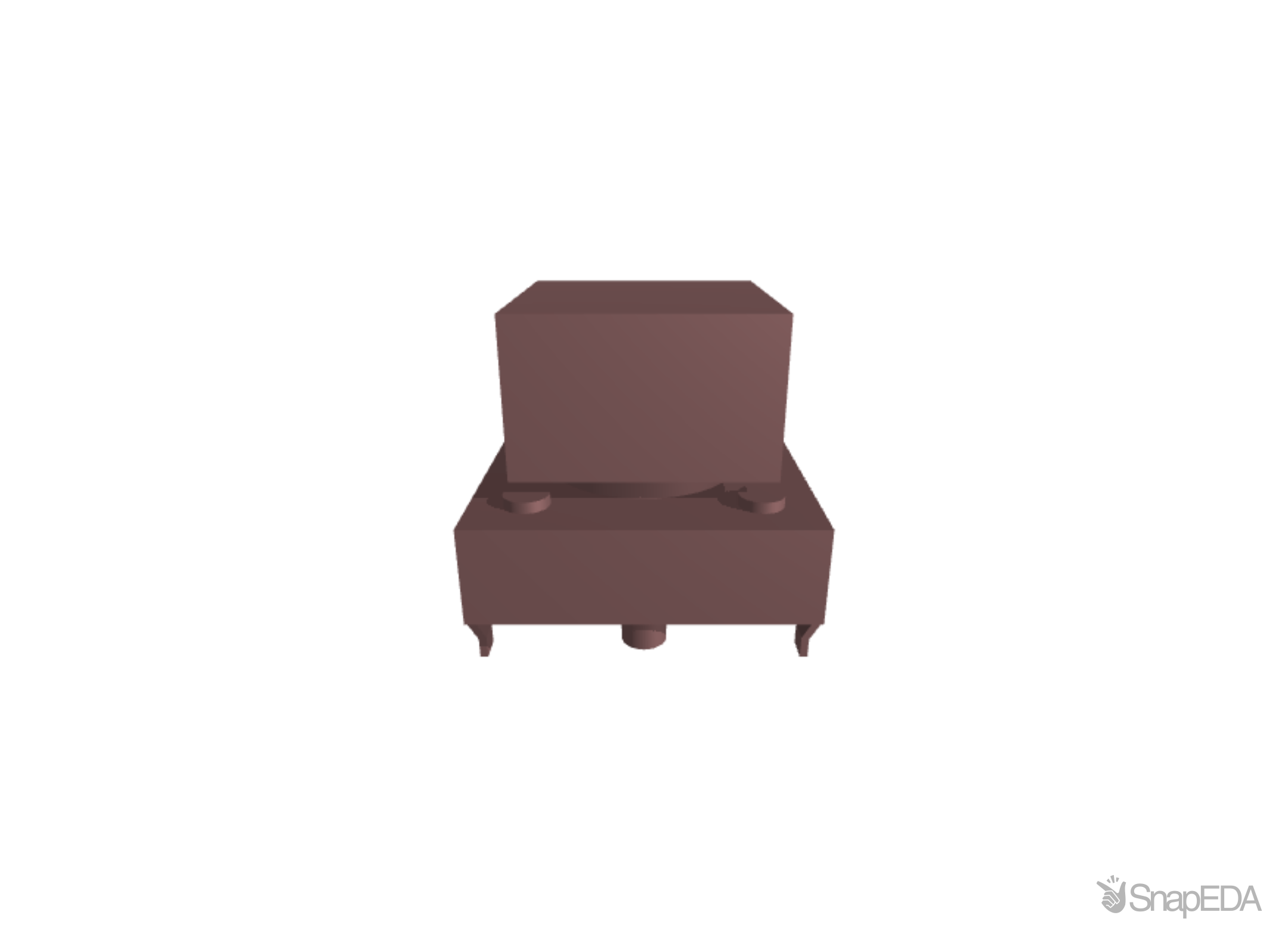

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3F-5051
| Part Name | B3F-5051 |
| Manufacturer | Omron Electronics |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 1.27 N |
| Actuator Colour | Blue |
| Dimensions | 12 x 12 x 7.3 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -25 → +70 (°C) |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Minimum Operating Temperature | -25 (°C) |
| Contact Configuration | SPST |
| Width | 12 (mm) |
| Length | 12 (mm) |
| Actuator Type | Plunger |
| Actuator Length | 3 (mm) |
| Mechanical Life | 3000000 (Operations) |
| Height | 7.3 (mm) |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Through Hole |
| Contact Material | Gold Plated |
