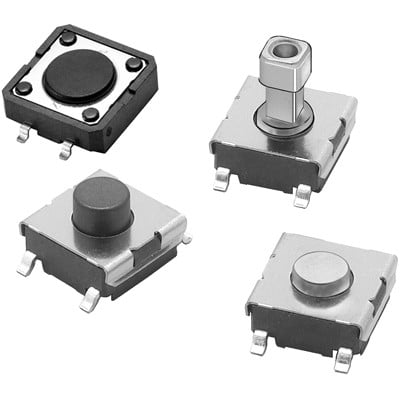

B3FS-1000P
SWITCH TACTILE SPST-NO 0.05A 24V | Omron Electronic Components B3FS-1000P
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3FS-1000P by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

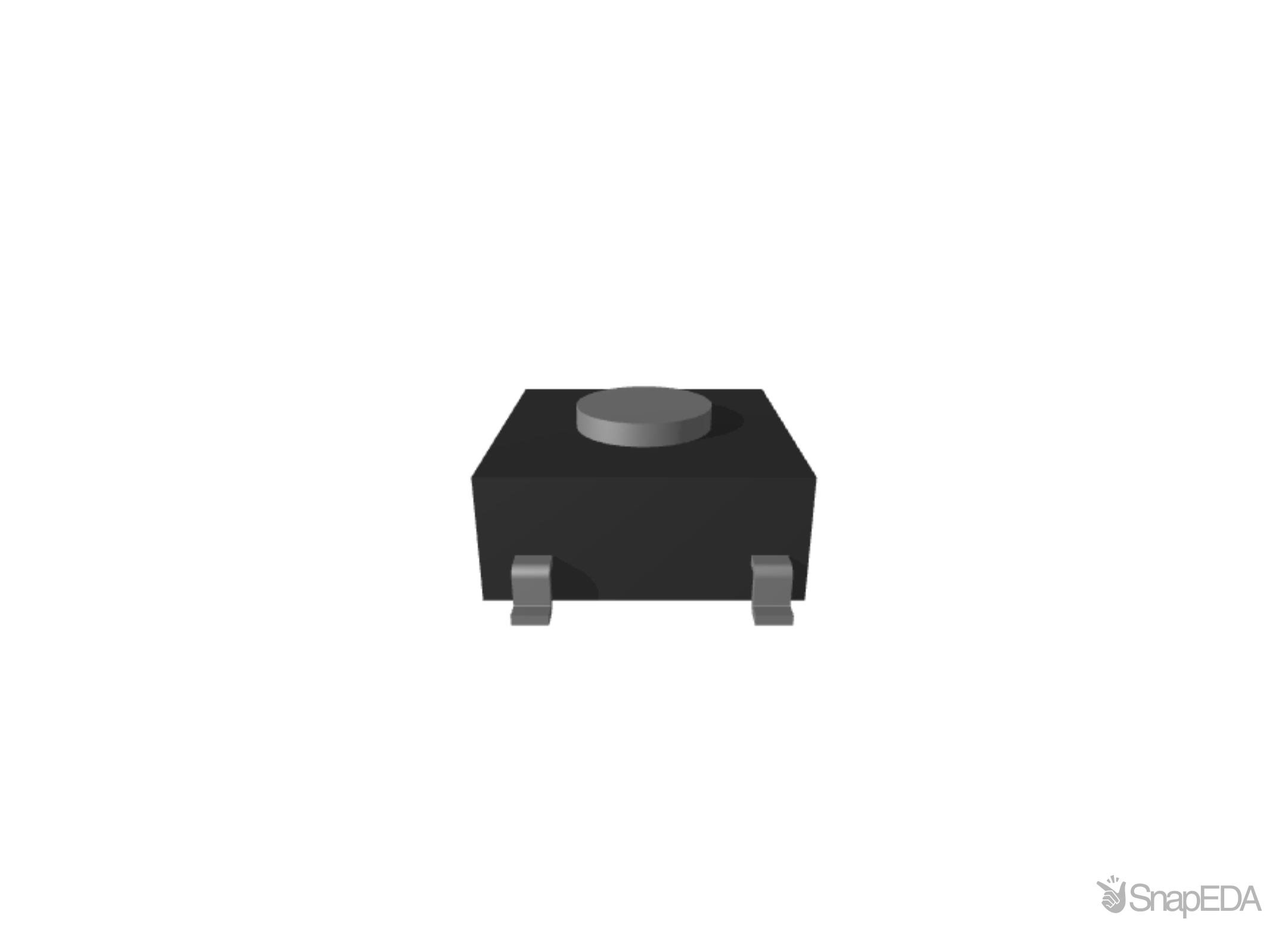

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3FS-1000P
| Part Name | B3FS-1000P |
| Manufacturer | Omron Electronics |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Operating Force | 0.98 N |
| Actuator Length | 0.5 (mm) |
| Dimensions | 6.3 x 6 x 3.10 (mm) |
| Mounting Type | Through Hole |
| Operating Temperature Range | -25 → +70 (°C) |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Minimum Operating Temperature | -25 (°C) |
| Contact Configuration | SPST |
| Width | 6 (mm) |
| Length | 6.3 (mm) |
| Actuator Type | Plunger |
| Mechanical Life | 1000000 (Operations) |
| Height | 3.1 (mm) |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Surface Mount |
| Contact Material | Silver Plated |
Inventory for the B3FS-1000P by Omron from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
| Chip One Stop |
2,332
|
|
Visit Site | |
| Conrad |
1
|
|
Visit Site | |
| CoreStaff |
1,698
|
|
Visit Site | |
| Farnell UK |
8,184
|
|
Visit Site | |
| Heilind Americas |
|
|
Visit Site | |
| Newark |
|
|
Visit Site | |
| RS UK |
2,420
|
5 x $0.54
|
Visit Site | |
| Rutronik |
|
|
Visit Site | |
| Schukat Electronic |
1,900
|
|
Visit Site | |
| TME |
1,431
|
|
Visit Site | |
| TTI Europe |
54,000
|
3,000 x $0.12
|
Visit Site | |
| element14 Singapore |
8,154
|
|
Visit Site |
No issues have been reported for the B3FS-1000P
If you experienced any issues with this part, please report it.
