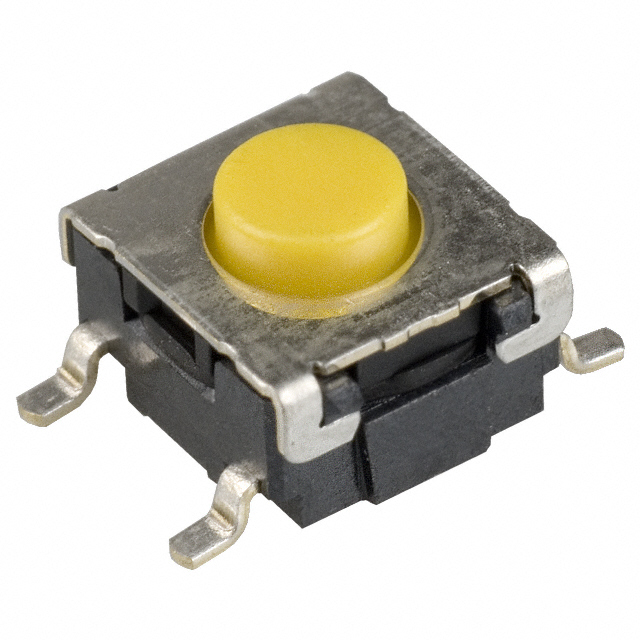

B3S-1002
Tactile Switch SPST-NO Top Actuated Surface Mount
Availability: In Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3S-1002 by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3S-1002
| Part Name | B3S-1002 |
| Manufacturer | Omron Electronics |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Actuator Type | Button |
| Operating Force | 2.26 N |
| Actuator Colour | Black |
| Dimensions | 6.6 x 6 x 4.30 (mm) |
| Mounting Type | Through Hole |
| Ip Rating | IP64 |
| Contact Current Rating (A) | 50 mA @ 24 V dc |
| Operating Temperature Range | -25 → +70 (°C) |
| Contact Configuration | SPST |
| Width | 6 (mm) |
| Length | 6.6 (mm) |
| Minimum Operating Temperature | -25 (°C) |
| Actuator Length | 0.8 (mm) |
| Mechanical Life | 300000 (Operations) |
| Height | 4.3 (mm) |
| Maximum Operating Temperature | +70 (°C) |
| Terminal Type | Surface Mount |
