B3SL-1002P
SWITCH;SMT KEYSWITCH,ACTILE&JOG SWITCHE 6X6MM,3.4MM HEIGHT FLAT TYPE PLUNGER T&R | Omron Electronic Components B3SL-1002P
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B3SL-1002P by Omron and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

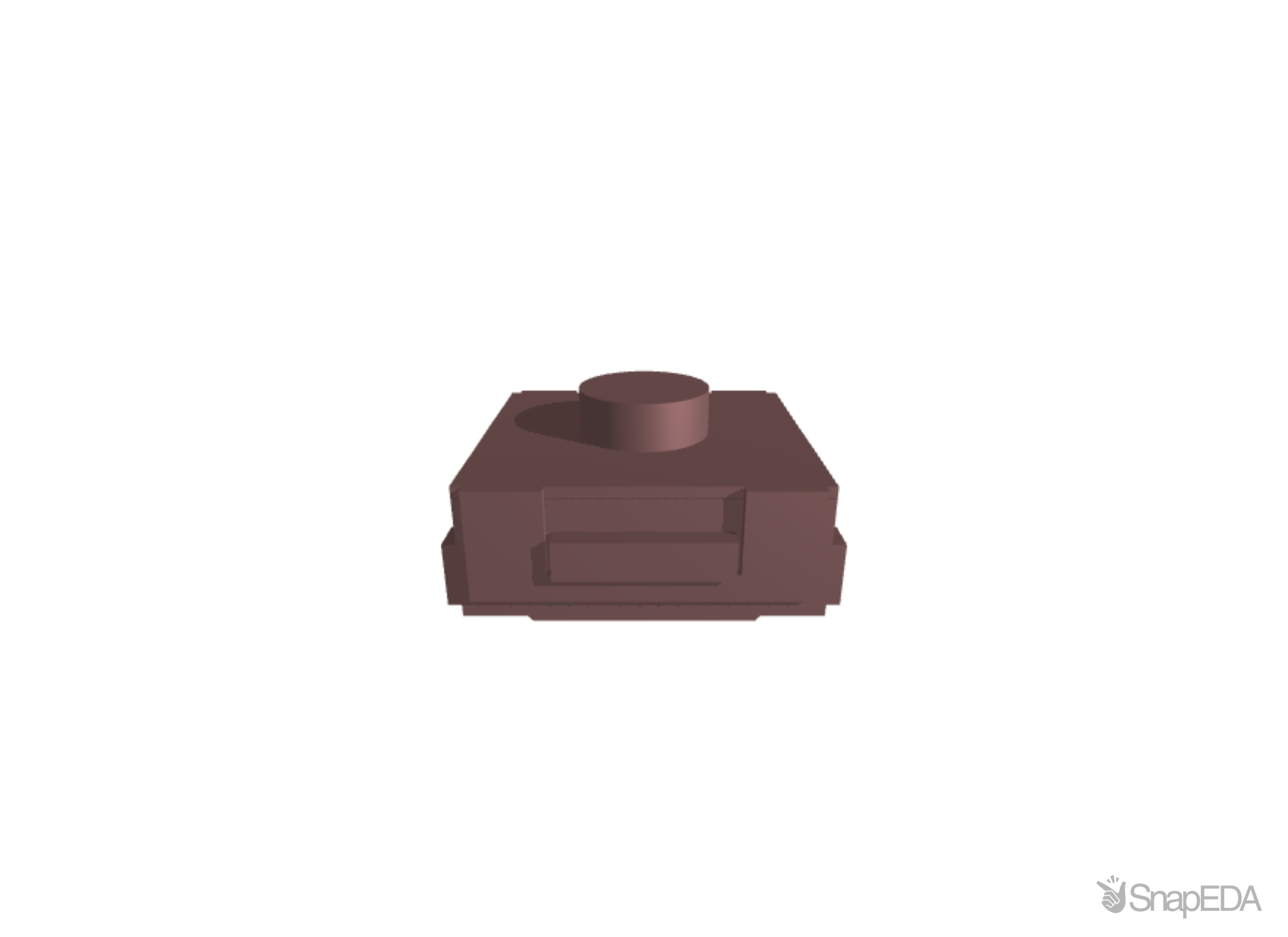

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B3SL-1002P
| Part Name | B3SL-1002P |
| Manufacturer | Omron Electronics |
| Category | Switches |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Actuator Colour | Green/Yellow |
| Mounting Type | Surface Mount |
| Ip Rating | IP67 |
| Contact Current Rating (A) | 50 mA |
| Contact Configuration | SPST |
| Actuator Type | Plunger |
| Actuator Length | 0.9 (mm) |
| Terminal Type | SMT |
| Switch Operation | Momentary |
