B57213P0509M301

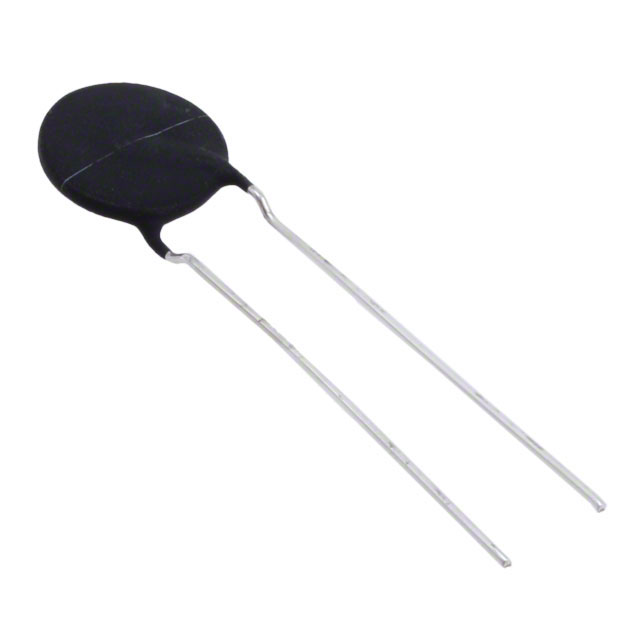

Inrush Current Limiter 5 Ohms ±20% 6 A 0.571" (14.50mm)
Availability: Out of Stock
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B57213P0509M301 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B57213P0509M301
| Part Name | B57213P0509M301 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Thermal Time Constant | 80 (s) |
| Maximum Power Rating | 3800 (mW) |
| Series | B57213P0***M3*1 |
| Resistance 25 C | 5 (Ω) |
| Height | 22 (mm) |
| Depth | 7 (mm) |
| Dimensions | 14.5 x 7 x 22 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Maximum Operating Temperature | +170 (°C) |
| Tolerance | ±20 (%) |
| Temperature Coefficient Type | NTC |
