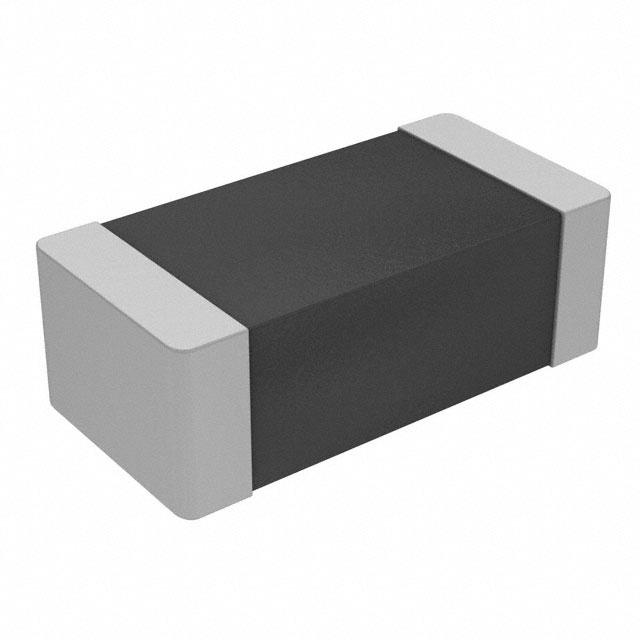

B57621C5472J062
Thermistor NTC 4.7K Ohm 5% 2-Pin 1206 Surface Mount Solder Pad 3500K T/R
Availability: In Stock
Package Type: 3216
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B57621C5472J062 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B57621C5472J062
| Part Name | B57621C5472J062 |
| Manufacturer | EPCOS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Thermal Time Constant | 10 (s) |
| Maximum Power Rating | 300 (mW) |
| Series | B57621C5 |
| Depth | 1.6 (mm) |
| Resistance 25 C | 4.7 (kΩ) |
| Height | 1.3 (mm) |
| Package Case | 1206 (3216M) |
| Length | 3.2 (mm) |
| Dimensions | 3.2 x 1.6 x 1.3 (mm) |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Operating Temperature | +125 (°C) |
| Tolerance | ±5 (%) |
| Thermal Coefficient | 6.1 (%/K) |
| Temperature Coefficient Type | NTC |
