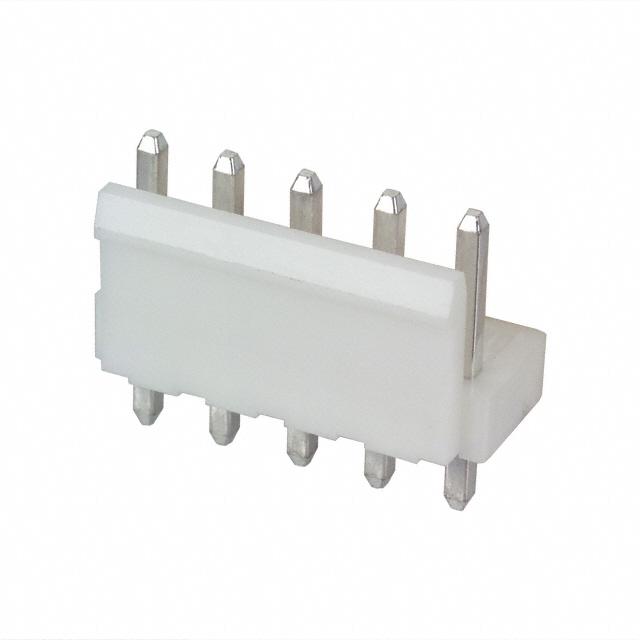

B5P-VH(LF)(SN)
Connector Header Through Hole 5 position 0.156" (3.96mm)
Availability: In Stock
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B5P-VH(LF)(SN) by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
2D Model
The 2D model for this
part is not available

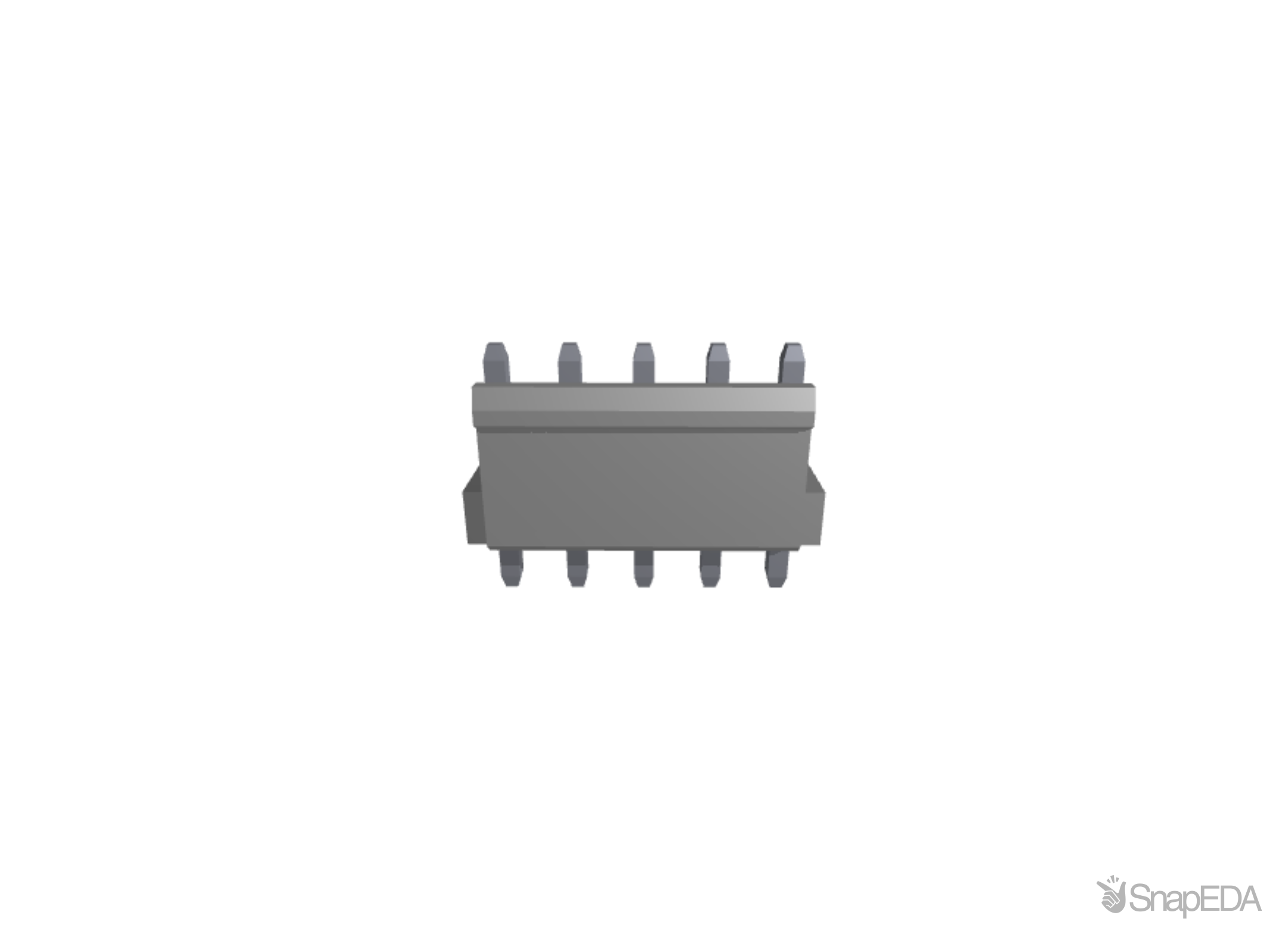

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B5P-VH(LF)(SN)
| Part Name | B5P-VH(LF)(SN) |
| Manufacturer | JST Sales |
| RoHS | True |
| Life Cycle Status | New Product |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Current Rating (A) | 10.0 (A) |
| Contact Plating | Tin |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | VH |
| Body Orientation | Straight |
| Termination Method | Solder |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Unshrouded |
| Pitch | 3.96 (mm) |
| Number Of Contacts | 5 |
| Series Number | B5P |
| Contact Material | Brass |
