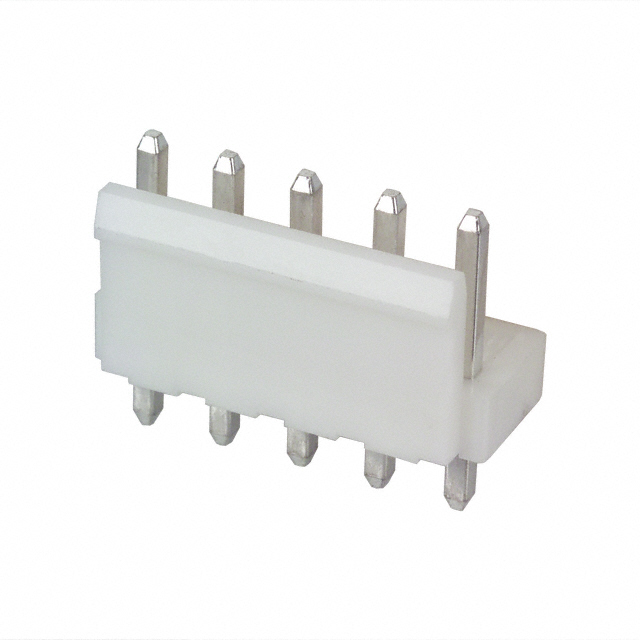

B5P-VH
Connector Header Through Hole 5 position 0.156" (3.96mm)
Availability: Out of Stock
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B5P-VH by JST and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B5P-VH
| Part Name | B5P-VH |
| Manufacturer | JST Sales |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Current Rating (A) | 10.0 (A) |
| Contact Plating | Copper, Tin |
| Mounting Type | Through Hole |
| Voltage Rating (V) | 250.0 V |
| Series | VH |
| Body Orientation | Top Entry |
| Termination Method | Crimp |
| Connector System | Wire to Board |
| Number Of Rows | 1 |
| Shrouded Unshrouded | Shrouded |
| Pitch | 3.96 (mm) |
| Number Of Contacts | 5 |
| Contact Material | Brass |
No issues have been reported for the B5P-VH
