B72207S0200K101
VARISTOR, 1.3J, 20VAC; Series:B722; Clamping Voltage Vc Max:65V; Peak Energy (10/1000uS):1.3J; Voltage Rating VDC:26V; Voltage Rating VAC:20V; Operating Temperature Range:-40°C to +85°C; Approval Bodies:UL, CECC, CSA; Body Diameter:9mm; Capacitance:1600pF; Clamping Voltage:65V; Clamping Voltage @ 8/20µs Max:65V; External Length / Height:11.5mm; Lead Length:30mm; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Package / Case:Radial; Peak Pulse Current IPP @ 8/20µs:250A; Suppressor Type:Varistor; Surge Current:250A; Transient Energy:1.3J; Varistor Voltage:33V; Varistor Voltage @ 1mA:33V; Varistor Voltage @ 1mA:29.7V; Varistor Voltage @ 1mA Max:36.3V; Varistor Voltage Tolerance +:10%
Availability: In Stock
Package Type: DISC-7
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72207S0200K101 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

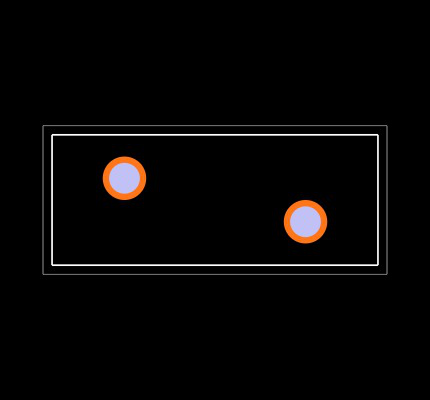

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72207S0200K101
| Part Name | B72207S0200K101 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 33 (V) |
| Diameter | 9 (mm) |
| Dimensions | 9 (Dia.) x 3.6 (mm) |
| Clamping Voltage (V) | 65 (V) |
| Series | Standard |
| Energy | 1.3 (J) |
| Material | Metal |
| Maximum Ac Voltage Rating (V) | 20 (V) |
| Thickness | 3.6 (mm) |
| Capacitance | 1.6 (nF) |
| Maximum Surge Current (A) | 250 (A) |
| Clamping Current (A) | 2.5 (A) |
| Lead Pitch | 5 (mm) |
| Maximum Dc Voltage Rating (V) | 26 (V) |
Inventory for the B72207S0200K101 by EPCOS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
46,495
|
6,805 x $0.04
|
Visit Site | |
| Arrow Europe |
1,500
|
1,500 x $0.13
|
Visit Site | |
| Buerklin |
3,851
|
|
Visit Site | |
| Verical |
1,139
|
|
Visit Site |
No issues have been reported for the B72207S0200K101
If you experienced any issues with the symbol or footprint, please report it.
