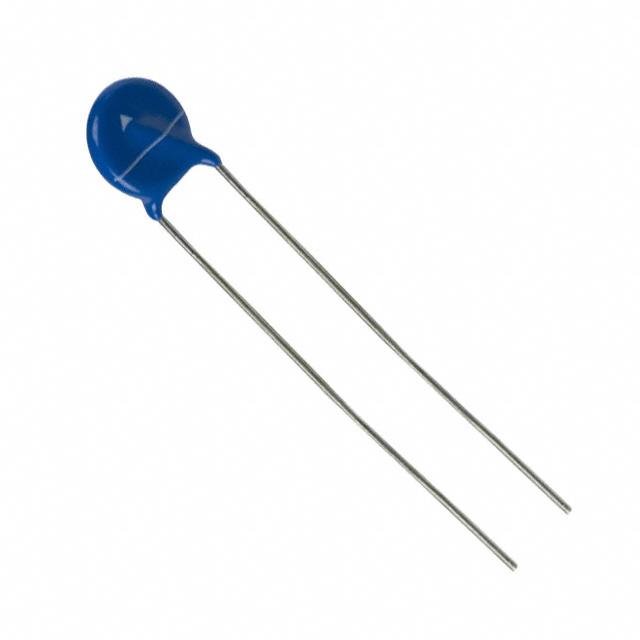

B72207S0421K101
680 V 1.2 kA Varistor 1 Circuit Through Hole Disc 7mm
Availability: In Stock
Package Type: DISC-7
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72207S0421K101 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

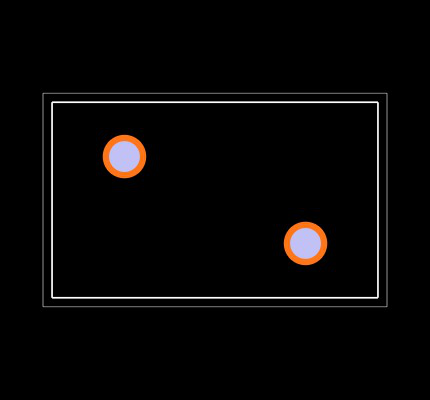

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72207S0421K101
| Part Name | B72207S0421K101 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 680 (V) |
| Diameter | 9 (mm) |
| Dimensions | 9 (Dia.) x 5.4 (mm) |
| Clamping Voltage (V) | 1120 (V) |
| Series | Standard |
| Energy | 32 (J) |
| Material | Metal |
| Maximum Ac Voltage Rating (V) | 420 (V) |
| Thickness | 5.4 (mm) |
| Capacitance | 75 (pF) |
| Maximum Surge Current (A) | 1200 (A) |
| Clamping Current (A) | 10 (A) |
| Lead Pitch | 5 (mm) |
| Maximum Dc Voltage Rating (V) | 560 (V) |
Inventory for the B72207S0421K101 by EPCOS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
4,171
|
|
Visit Site | |
|
★ Featured
|
45,853
|
|
Visit Site | |
|
★ Featured
|
2,180
|
12,450 x $0.02
|
Visit Site | |
| Arrow Europe |
175,046
|
|
Visit Site | |
| Verical |
1,708
|
|
Visit Site |
No issues have been reported for the B72207S0421K101
