B72220P3381K101
620 V 12 kA Varistor 1 Circuit Through Hole Disc 20mm
Availability: Out of Stock
Package Type: DISC-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72220P3381K101 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

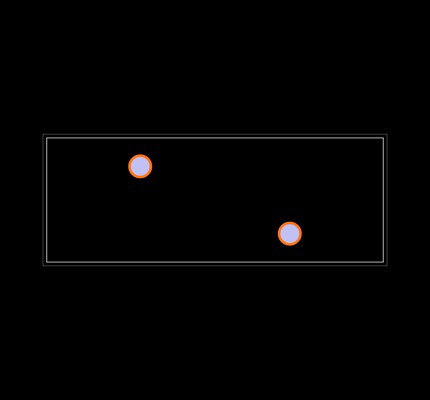

Footprint
No web preview
This Footprint is Available for

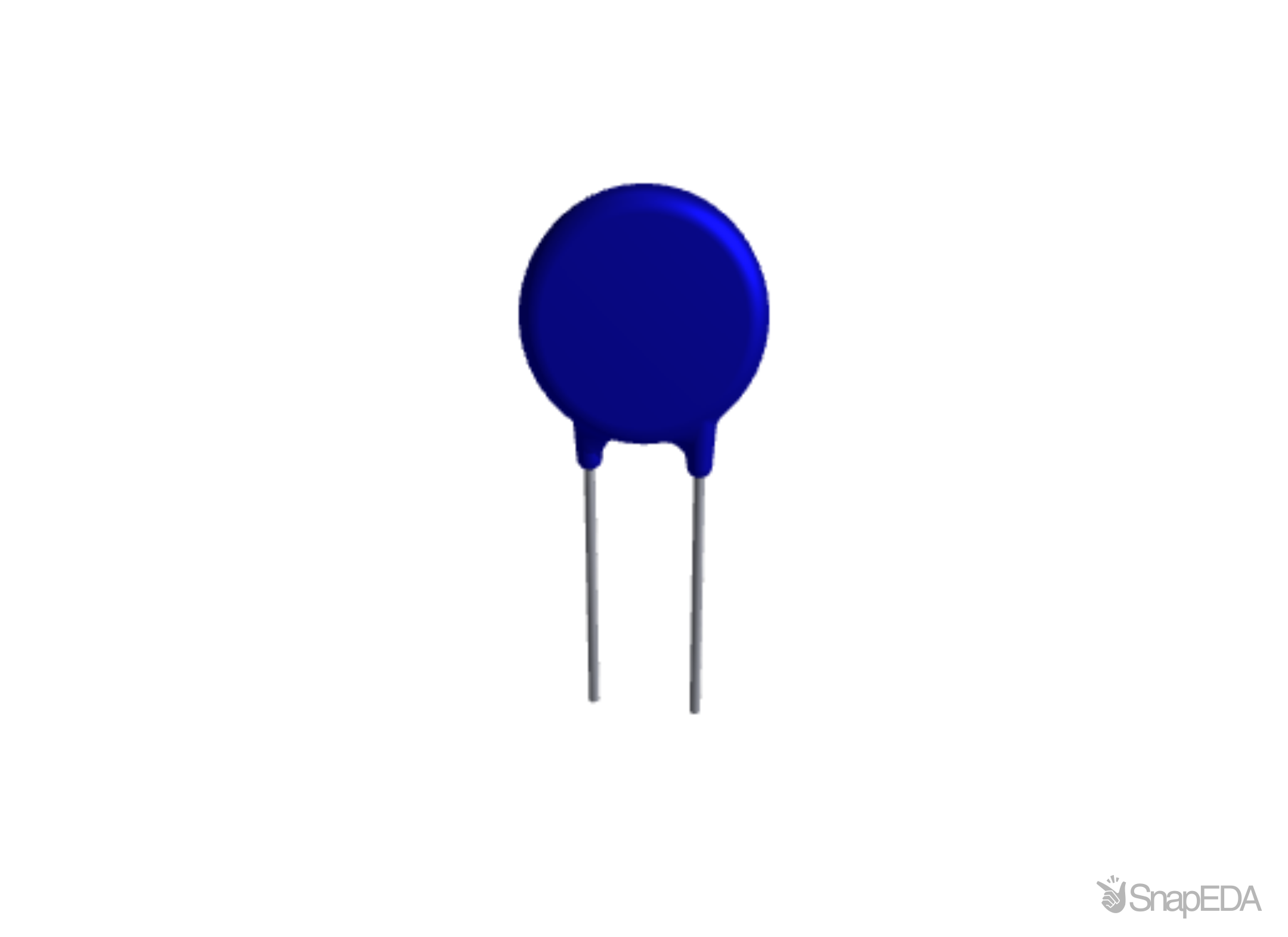

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72220P3381K101
| Part Name | B72220P3381K101 |
| Manufacturer | EPCOS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Varistor Voltage (V) | 620 (V) |
| Diameter | 22.5 (mm) |
| Dimensions | 22.5 (Dia.) x 8.3 (mm) |
| Clamping Voltage (V) | 1025 (V) |
| Series | SuperioR-MP |
| Energy | 370 (J) |
| Material | Metal |
| Maximum Ac Voltage Rating (V) | 385 (V) |
| Thickness | 8.3 (mm) |
| Capacitance | 800 (pF) |
| Maximum Surge Current (A) | 12000 (A) |
| Clamping Current (A) | 100 (A) |
| Lead Pitch | 10 (mm) |
| Maximum Dc Voltage Rating (V) | 505 (V) |
