B72220S0111K101
VARISTOR, 60.0J, 115VAC; Series:B722; Surge Current:6.5kA; Suppressor Type:Varistor; Clamping Voltage:300V; Max Transient Energy 10/1000µs:60J; Voltage Rating DC:150V; Voltage Rating AC:115V; Operating Temperature Range:-40°C to +85°C; Approval Bodies:UL, CECC; Approval Category:; Body Diameter:22.5mm; Capacitance:1520pF; Case Style:Radial; External Depth:1mm; External Length / Height:26mm; Lead Length:30mm; Max Clamping Voltage:300V; Max Clamping Voltage @ 8/20µs:300V; Max Operating Temperature:85°C; Max Varistor Voltage @ 1mA:198V; Min Temperature Operating:-40°C; Peak Pulse Current IPP @ 8/20µs:6500A; Transient Energy:60J; Varistor Voltage:180V; Varistor Voltage @ 1mA:162V; Varistor Voltage Tolerance +:10%
Availability: In Stock
Package Type: DISC-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72220S0111K101 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for

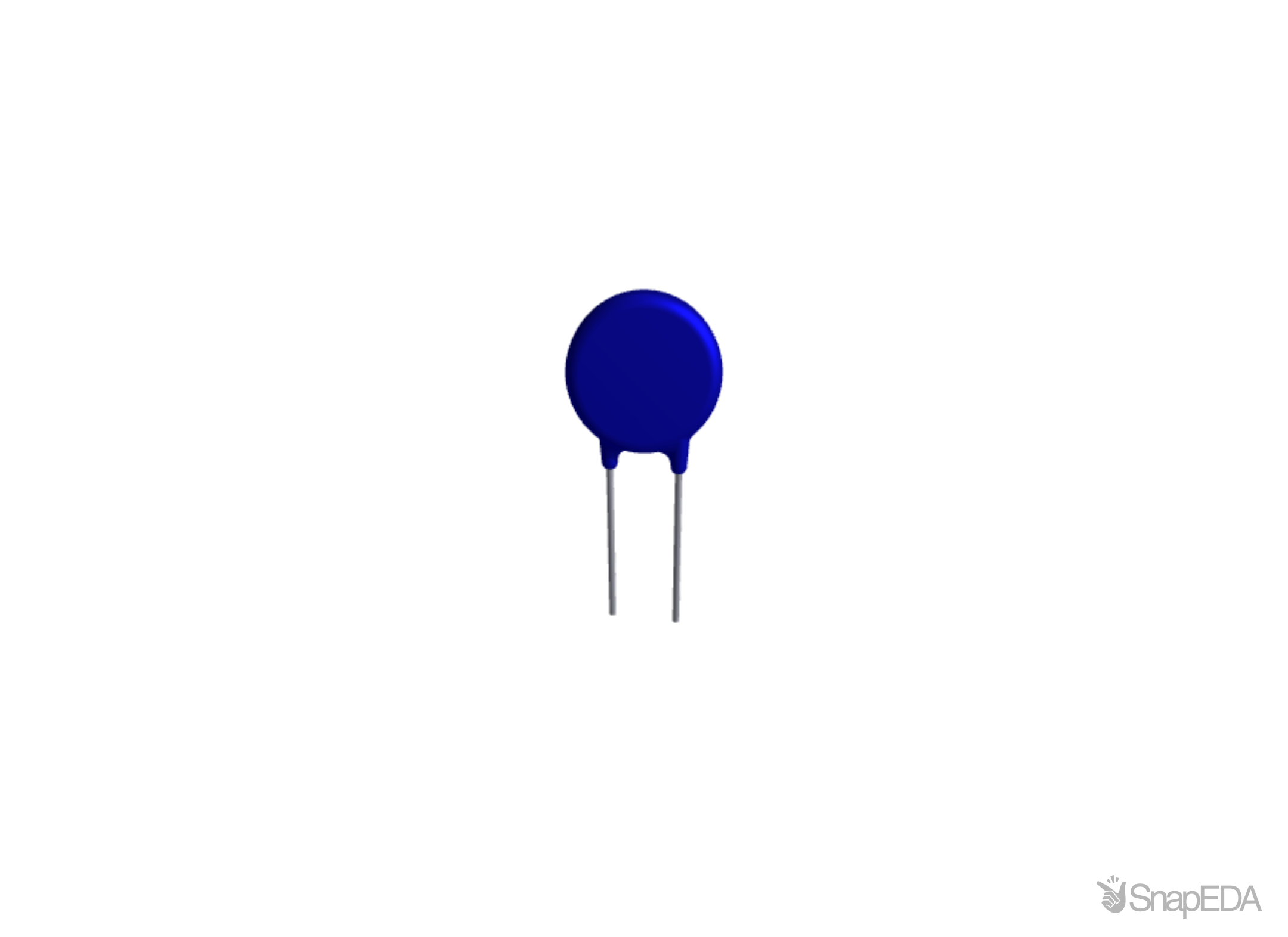

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72220S0111K101
| Part Name | B72220S0111K101 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 180 (V) |
| Diameter | 21.5 (mm) |
| Dimensions | 21.5 (Dia.) x 4.7 (mm) |
| Clamping Voltage (V) | 300 (V) |
| Series | Standard |
| Energy | 60 (J) |
| Material | Metal |
| Maximum Ac Voltage Rating (V) | 115 (V) |
| Thickness | 4.7 (mm) |
| Capacitance | 1.52 (nF) |
| Maximum Surge Current (A) | 6500 (A) |
| Clamping Current (A) | 100 (A) |
| Lead Pitch | 10 (mm) |
| Maximum Dc Voltage Rating (V) | 150 (V) |
Inventory for the B72220S0111K101 by EPCOS from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
6,000
|
1,445 x $0.24
|
Visit Site | |
| Arrow Europe |
2,715
|
|
Visit Site | |
| Buerklin |
133
|
|
Visit Site | |
| Verical |
2,712
|
12 x $0.90
|
Visit Site |
No issues have been reported for the B72220S0111K101
