B72220S0461K101
VARISTOR, 195J, 460VAC; Series:B722; Clamping Voltage Vc Max:1240V; Peak Energy (10/1000uS):195J; Voltage Rating VDC:615V; Voltage Rating VAC:460V; Operating Temperature Range:-40°C to +85°C; Approval Bodies:UL, CECC, CSA; Body Diameter:22.5mm; Capacitance:380pF; Clamping Voltage:1.24kV; Clamping Voltage @ 8/20µs Max:1240V; External Depth:1mm; External Length / Height:27mm; Lead Length:30mm; Operating Temperature Max:85°C; Operating Temperature Min:-40°C; Package / Case:Radial; Peak Pulse Current IPP @ 8/20µs:8000A; Suppressor Type:Varistor; Surge Current:8kA; Transient Energy:195J; Varistor Voltage:750V; Varistor Voltage @ 1mA:750V; Varistor Voltage @ 1mA:675V; Varistor Voltage @ 1mA Max:825V; Varistor Voltage Tolerance +:10%
Availability: Out of Stock
Package Type: DISC-20
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72220S0461K101 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

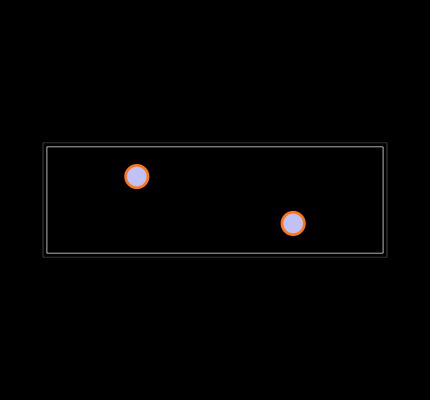

Footprint
No web preview
This Footprint is Available for

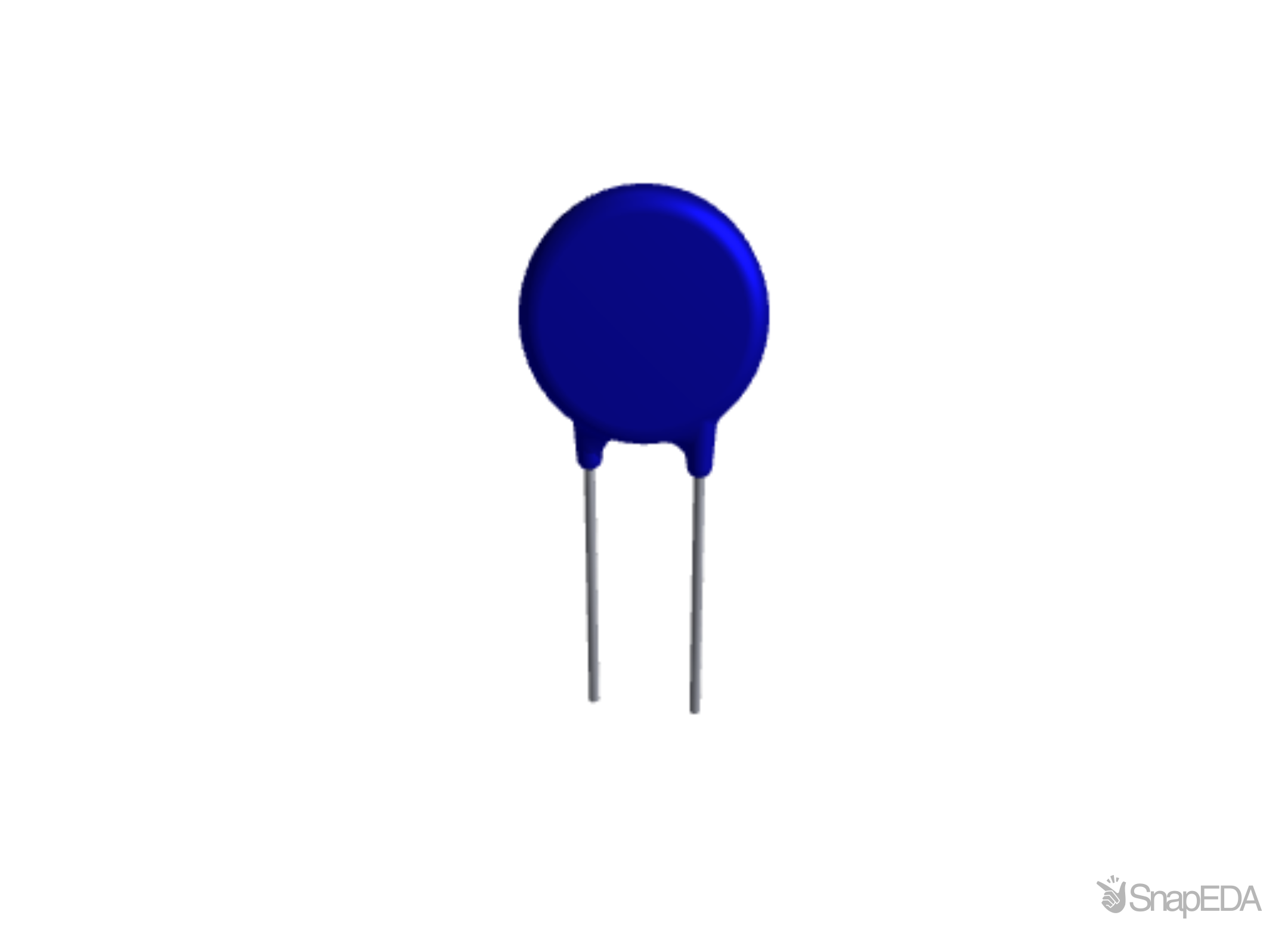

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72220S0461K101
| Part Name | B72220S0461K101 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 750 (V) |
| Diameter | 21.5 (mm) |
| Dimensions | 21.5 (Dia.) x 6.8 (mm) |
| Clamping Voltage (V) | 1240 (V) |
| Series | Standard |
| Energy | 195 (J) |
| Material | Metal |
| Maximum Ac Voltage Rating (V) | 460 (V) |
| Thickness | 6.8 (mm) |
| Capacitance | 380 (pF) |
| Maximum Surge Current (A) | 8000 (A) |
| Clamping Current (A) | 100 (A) |
| Lead Pitch | 10 (mm) |
| Maximum Dc Voltage Rating (V) | 615 (V) |
No issues have been reported for the B72220S0461K101
