B72225S4171K101
B722 Series 225 V 175 Vrms 455 V Clamp 20 kA 2900 pF SuperioR Leaded Varistor
Availability: In Stock
Package Type: DISC-27
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72225S4171K101 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

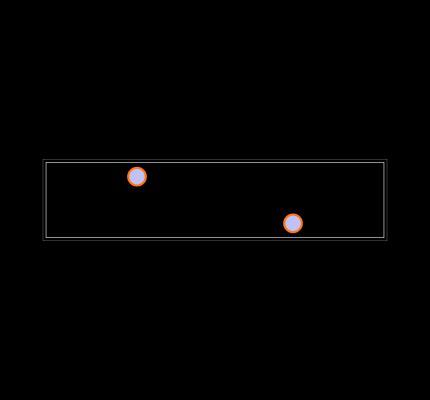

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72225S4171K101
| Part Name | B72225S4171K101 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 270 (V) |
| Diameter | 27.5 (mm) |
| Dimensions | 27.5 Dia. x 6.1 (mm) |
| Clamping Voltage (V) | 455 (V) |
| Series | S25 |
| Energy | 245 (J) |
| Material | Metal |
| Maximum Ac Voltage Rating (V) | 170 (V) |
| Thickness | 6.1 (mm) |
| Capacitance | 2.9 (nF) |
| Maximum Surge Current (A) | 20000 (A) |
| Clamping Current (A) | 150 (A) |
| Lead Pitch | 12.7 (mm) |
| Maximum Dc Voltage Rating (V) | 225 (V) |
