B72510E0300K062

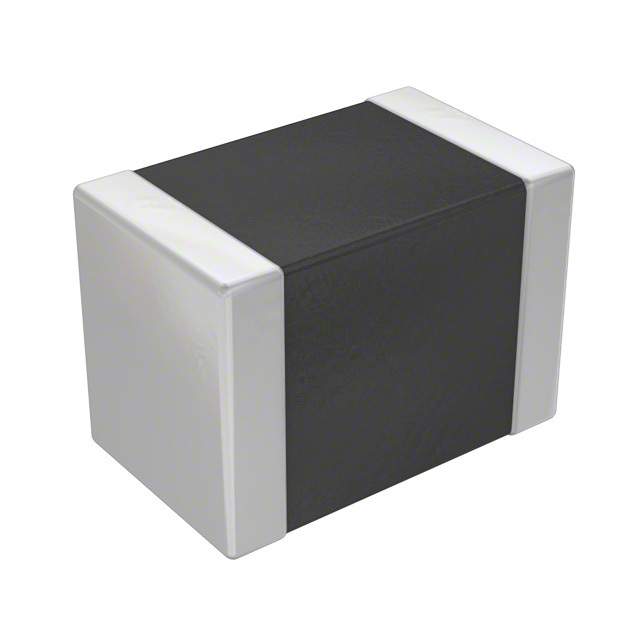

47 V 80 A Varistor 1 Circuit Surface Mount 0805 (2012 Metric)
Availability: In Stock
Package Type: 0805
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72510E0300K062 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72510E0300K062
| Part Name | B72510E0300K062 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 42.3 → 51.7 (V) |
| Clamping Voltage (V) | 77 (V) |
| Dimensions | 2 x 1.25 x 1.4 (mm) |
| Package Case | 0805 (2012M) |
| Series | CT/B |
| Energy | 0.3 (J) |
| Material | Ceramic |
| Depth | 1.25 (mm) |
| Maximum Ac Voltage Rating (V) | 30 (V) |
| Capacitance | 200 (pF) |
| Length | 2 (mm) |
| Maximum Surge Current (A) | 80 (A) |
| Clamping Current (A) | 1 (A) |
| Maximum Dc Voltage Rating (V) | 38 (V) |
