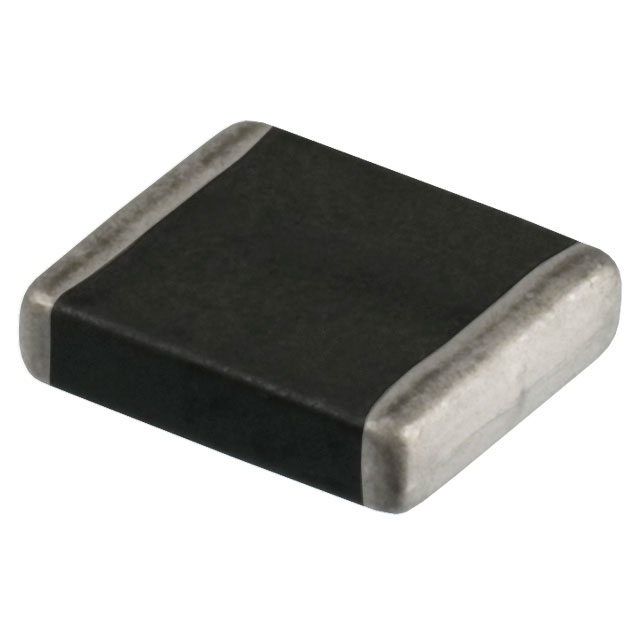

B72540E0170K062
VARISTOR, MULTILAYER, 22VDC, 2220; Series:MLV E; Varistor Type:Multilayer Varistor (MLV); Peak Surge Current @ 8/20µs:1.2kA; Varistor Case:2220 [5650 Metric]; Clamping Voltage Vc Max:44V; Voltage Rating V DC:22V; Voltage Rating V AC:17V; Operating Temperature Min:-55°C; Operating Temperature Max:150°C; MSL:-; SVHC:No SVHC (20-Jun-2013); Operating Temperature Range:-55°C to +150°C
Availability: In Stock
Package Type: 2220
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72540E0170K062 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

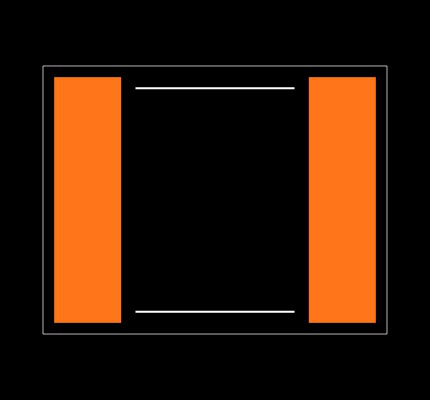

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72540E0170K062
| Part Name | B72540E0170K062 |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Varistor Voltage (V) | 24.3 → 29.7 (V) |
| Clamping Voltage (V) | 44 (V) |
| Dimensions | 5.7 x 5 x 2.5 (mm) |
| Package Case | 2220 (5650M) |
| Series | CT/B |
| Energy | 7.2 (J) |
| Material | Ceramic |
| Depth | 5 (mm) |
| Maximum Ac Voltage Rating (V) | 17 (V) |
| Capacitance | 9 (nF) |
| Length | 5.7 (mm) |
| Maximum Surge Current (A) | 1200 (A) |
| Clamping Current (A) | 10 (A) |
| Maximum Dc Voltage Rating (V) | 22 (V) |
