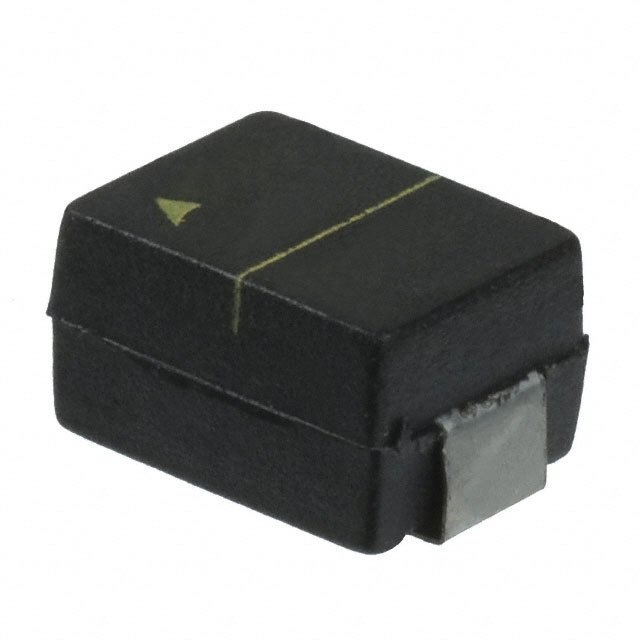

B72650M0301K072
CU Series Metal OxideVaristor 45pF 5A, Clamping 775V, Varistor 470V 3225 Case
Availability: Out of Stock
Package Type: SMD-2
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B72650M0301K072 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B72650M0301K072
| Part Name | B72650M0301K072 |
| Manufacturer | EPCOS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Varistor Voltage (V) | 470 (V) |
| Clamping Voltage (V) | 775 (V) |
| Dimensions | 8 x 6.3 x 4.5 (mm) |
| Package Case | 1210 (3225M) |
| Series | CU |
| Material | Metal |
| Length | 8 (mm) |
| Maximum Ac Voltage Rating (V) | 300 (V) |
| Thickness | 4.5 (mm) |
| Capacitance | 45 (pF) |
| Depth | 6.3 (mm) |
| Maximum Surge Current (A) | 400 (A) |
| Clamping Current (A) | 5 (A) |
| Maximum Dc Voltage Rating (V) | 385 (V) |
