B82432T1332K
Ind 3.3uH 10% 7.96MHz 10Q-Factor Ferrite 900mA 1812 Blister T/R
Availability: Out of Stock
Package Type: 1812
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B82432T1332K by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

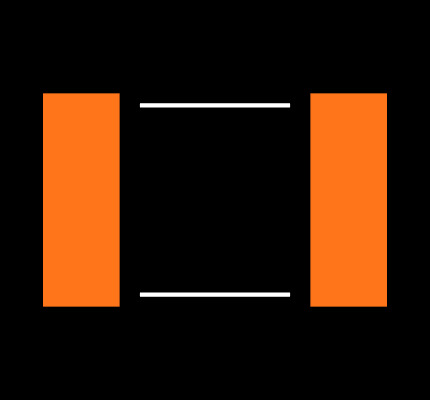

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B82432T1332K
| Part Name | B82432T1332K |
| Manufacturer | EPCOS |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Automotive Standard | AEC-Q200 |
| Maximum Dc Resistance | 190 (mΩ) |
| Inductor Construction | Ferrite Core |
| Dimensions | 4.5 x 3.2 x 3.2 (mm) |
| Inductance | 3.3 μH |
| Shielded | Yes |
| Series | SIMID |
| Minimum Quality Factor | 10 |
| Depth | 3.2 (mm) |
| Height | 3.2 (mm) |
| Maximum Dc Current (A) | 900 (mA) |
| Length | 4.5 (mm) |
| Core Material | Ferrite |
| Minimum Operating Temperature | -55 (°C) |
| Maximum Self Resonant Frequency | 50 (MHz) |
| Maximum Operating Temperature | +150 (°C) |
| Tolerance | ±10 (%) |
| Moulded | Yes |
| Package/Case | 1812 (4532M) |
