B82442A1473K
Ind General Purpose Chip Wirewound 47uH 10% 2.52MHz 10Q-Factor Ferrite 340mA 2220 Blister T/R
Availability: In Stock
Package Type: SMD-2
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B82442A1473K by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

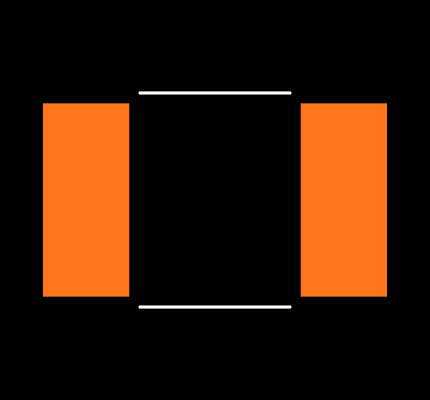

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B82442A1473K
| Part Name | B82442A1473K |
| Manufacturer | EPCOS |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Maximum Dc Resistance | 680 (mΩ) |
| Inductor Construction | Wire-Wound |
| Dimensions | 5.6 x 5 x 5 (mm) |
| Inductance | 47 μH |
| Shielded | Yes |
| Series | SIMID |
| Minimum Operating Temperature | -55 (°C) |
| Depth | 5 (mm) |
| Height | 5 (mm) |
| Maximum Dc Current (A) | 340 (mA) |
| Length | 5.6 (mm) |
| Core Material | Ferrite |
| Minimum Quality Factor | 10 |
| Maximum Self Resonant Frequency | 8.5 (MHz) |
| Maximum Operating Temperature | +150 (°C) |
| Tolerance | ±10 (%) |
| Moulded | Yes |
| Package/Case | 2220 (5650M) |
