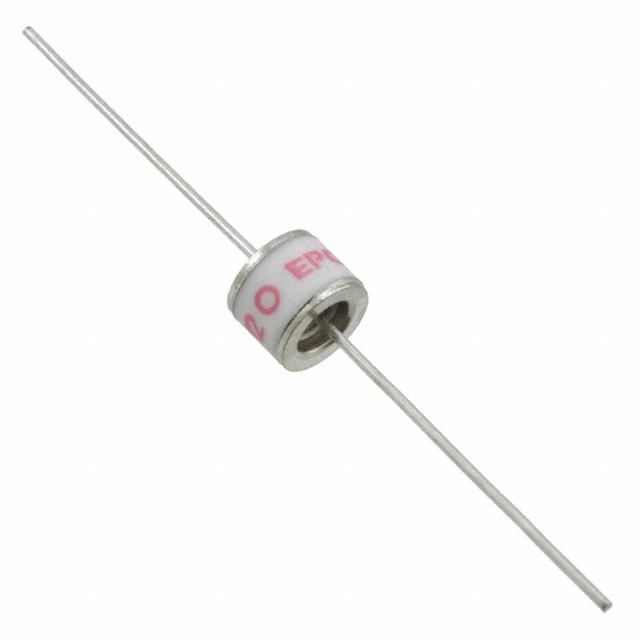

B88069X0780S102
Gas Discharge Tube 540 V 5000A (5kA) 2 Pole Through Hole
Availability: Out of Stock
Package Type: AXIAL CYLINDER
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the B88069X0780S102 by EPCOS and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the B88069X0780S102
| Part Name | B88069X0780S102 |
| Manufacturer | EPCOS |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Mounting Type | Through Hole |
| Maximum Voltage Rating (V) | 720 V dc |
| Dc Spark Over Voltage (V) | 540 → 720 (V) |
| Length | 6.05 (mm) |
| Minimum Operating Temperature | -40 (°C) |
| Series | EHV |
| Impulse Spark Over Voltage (V) | 1000 V, 1100 (V) |
| Maximum Surge Current (A) | 10 (kA) |
| Maximum Operating Temperature | +90 (°C) |
| Suppressor Type | 2 Electrode Arrester |
No issues have been reported for the B88069X0780S102
