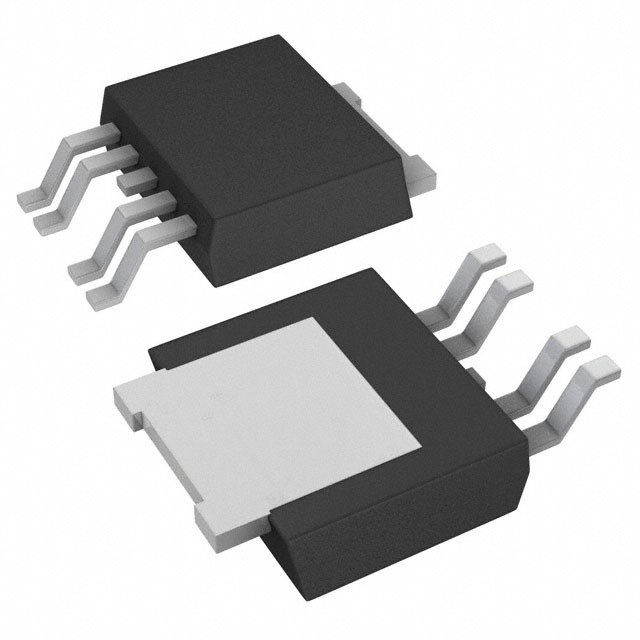

BA00CC0WFP-E2
Linear Voltage Regulator IC Positive Adjustable 1 Output 1A TO-252-5
Availability: Out of Stock
Package Type: TO-252-5
CAD Models: Symbol and Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BA00CC0WFP-E2 by Rohm and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
Symbol
No web preview
This Symbol is Available for

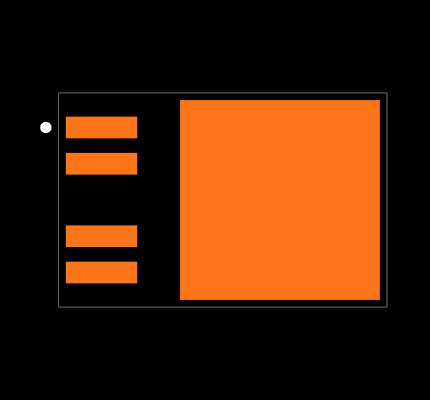

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BA00CC0WFP-E2
| Part Name | BA00CC0WFP-E2 |
| Manufacturer | Rohm |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Polarity | Positive |
| Number Of Outputs | 1 |
| Load Regulation | 150 mV |
| Dimensions | 6.5 x 5.5 x 2.3 (mm) |
| Mounting Type | Surface Mount |
| Maximum Output Current (A) | 1 (A) |
| Accuracy | ±1 (%) |
| Regulator Type | Low Dropout Voltage |
| Output Type | Adjustable |
| Height | 2.3 (mm) |
| Width | 5.5 (mm) |
| Length | 6.5 (mm) |
| Output Voltage (V) | 3 → 15 V |
| Package Type | TO-252 |
| Minimum Operating Temperature | -40 °C |
| Minimum Input Voltage (V) | 4 V |
| Maximum Operating Temperature | +125 °C |
| Pin Count | 5 |
| Maximum Input Voltage (V) | 25 V |
| Line Regulation | 100 mV |
No issues have been reported for the BA00CC0WFP-E2
