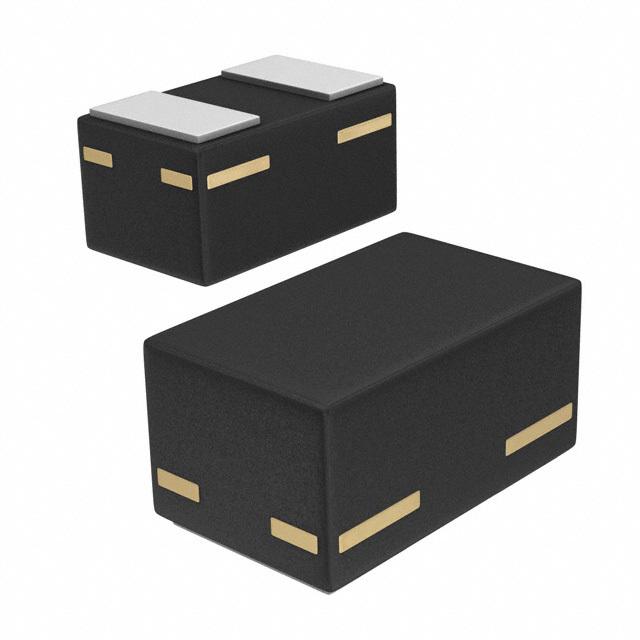

BAS16L,315
Diode Standard 100 V 215mA (DC) Surface Mount DFN1006-2
Availability: In Stock
Package Type: DFN1006-2-2
CAD Models: Footprint
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BAS16L,315 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
The 2D model for this
part is not available.
The Exact Symbol for this part is not available.
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BAS16L,315
| Part Name | BAS16L,315 |
| Manufacturer | Nexperia |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diode Configuration | Single |
| Dimensions | 1.02 x 0.62 x 0.47 (mm) |
| Mounting Type | Surface Mount |
| Maximum Forward Current (A) | 215 (mA) |
| Maximum Forward Voltage Drop (V) | 1.25 (V) |
| Height | 0.47 (mm) |
| Width | 0.62 (mm) |
| Length | 1.02 (mm) |
| Package Type | SOD-882 |
| Number Of Elements Per Chip | 1 |
| Minimum Operating Temperature | -65 °C |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 2 |
