BAT42
Diode Schottky 30 V 200mA (DC) Through Hole DO-35
Availability: In Stock
Package Type: DO-35
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BAT42 by STMicroelectronics and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

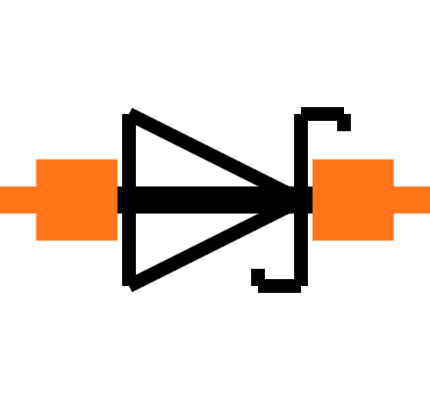

Symbol
No web preview
This Symbol is Available for

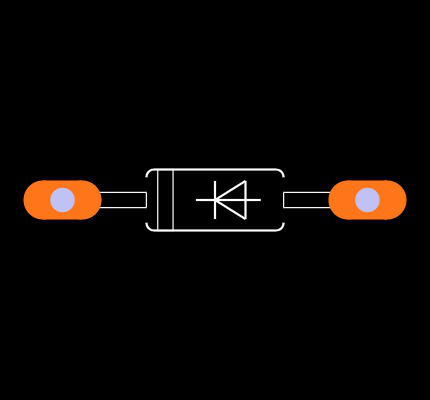

Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BAT42
| Part Name | BAT42 |
| Manufacturer | STMicroelectronics |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Diameter | 1.7 (mm) |
| Mounting Type | Through Hole |
| Rectifier Type | Schottky Diode |
| Diode Technology | Schottky |
| Maximum Forward Voltage Drop (V) | 450 (mV) |
| Peak Reverse Recovery Time | 5 (ns) |
| Package Type | DO-35 |
| Peak Reverse Repetitive Voltage (V) | 30 (V) |
| Diode Type | Schottky |
| Maximum Continuous Forward Current (A) | 200 (mA) |
| Diode Configuration | Single |
| Pin Count | 2 |
| Peak Non Repetitive Forward Surge Current (A) | 4 (A) |
| Number Of Elements Per Chip | 1 |
Inventory for the BAT42 by STMicroelectronics from major distributors.
| Supplier | Quantity | Price | Purchase | |
|---|---|---|---|---|
|
★ Featured
|
3,600
|
7,855 x $0.04
|
Visit Site | |
| Arrow Europe |
436,000
|
4,000 x $0.04
|
Visit Site | |
| Avnet America |
20,000
|
|
Visit Site | |
| Buerklin |
582
|
|
Visit Site | |
| Conrad |
4,076
|
1 x $0.04
|
Visit Site | |
| Farnell UK |
9,096
|
|
Visit Site | |
| Newark |
|
1 x $0.08
|
Visit Site | |
| RS UK |
2,135
|
4,000 x $0.03
|
Visit Site | |
| Schukat Electronic |
51,100
|
|
Visit Site | |
| TME |
4,296
|
|
Visit Site | |
| Verical |
28,000
|
16,000 x $0.04
|
Visit Site | |
| element14 Singapore |
7,901
|
|
Visit Site |
No issues have been reported for the BAT42
