BBL-132-G-E
SnapVerified

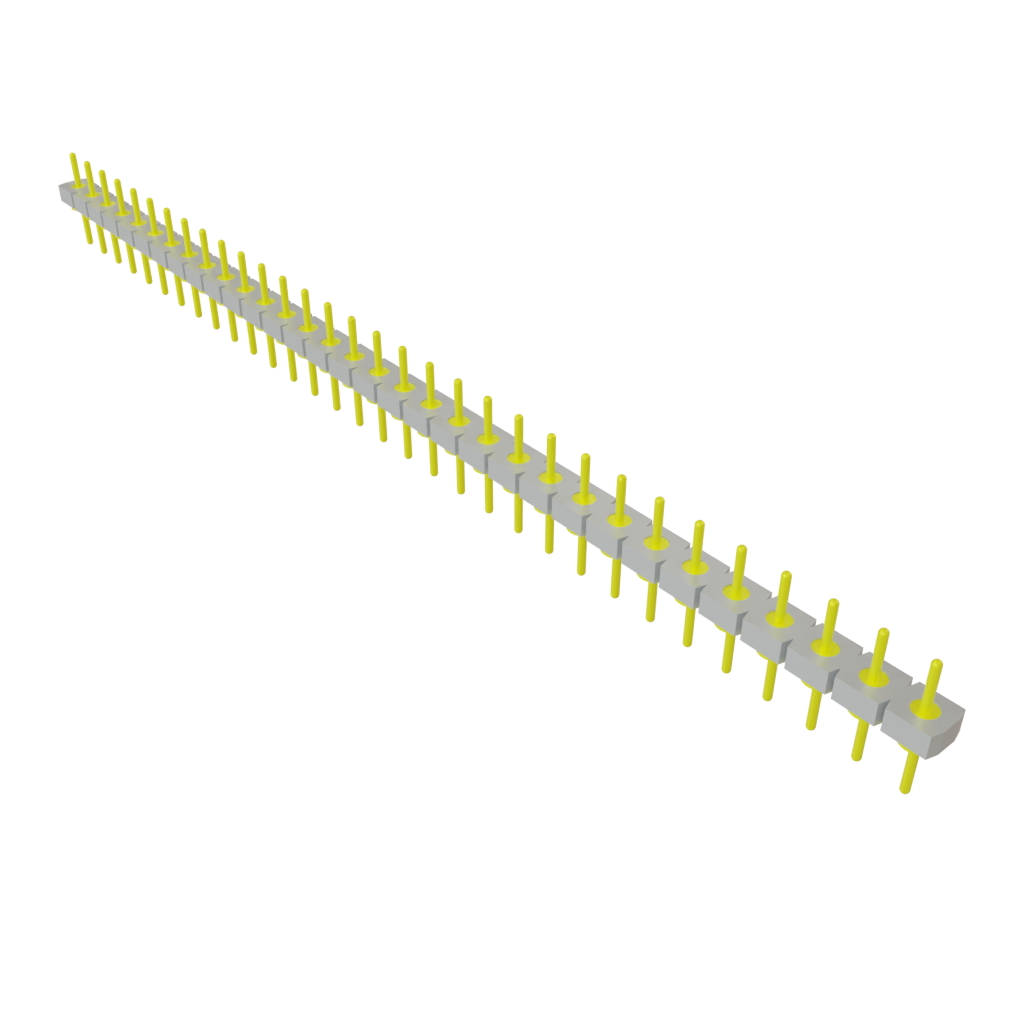

BBL - Samtec 2.54mm Low Profile Single Row Machined Header - Fast Stock
Availability: In Stock
Country of Origin: Malaysia
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BBL-132-G-E by Samtec and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
Symbol
No web preview
This Symbol is Available for
Footprint
No web preview
This Footprint is Available for
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BBL-132-G-E
| Part Name | BBL-132-G-E |
| Manufacturer | Samtec |
| HTS Number | 8536.69 |
| ECCN Category | EAR99 |
| Series | BBL |
| Country of Origin | Malaysia |
| Packaging | Tube |
| Life Cycle Status | Production |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Tail Pin Length | 3.18 (mm) |
| Current Rating (A) | 1.0 (A) |
| Shrouded Unshrouded | Unshrouded |
| Mounting Type | Through Hole |
| Series | BBL |
| Body Orientation | Straight |
| Pitch | 2.54 (mm) |
| Connector System | Board to Board |
| Number Of Rows | 1 |
| Contact Plating | Gold |
| Termination Method | Solder |
| Mating Pin Length | 2.67 (mm) |
| Number Of Contacts | 32 |
| Contact Material | Brass |
