BC327BU
Bipolar (BJT) Transistor PNP 45 V 800 mA 100MHz 625 mW Through Hole TO-92-3
Availability: In Stock
Package Type: TO-92-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BC327BU by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model

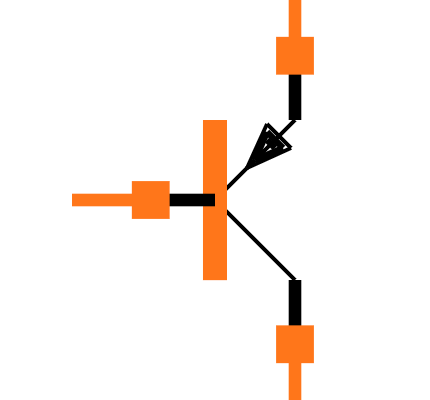

Symbol
No web preview
This Symbol is Available for

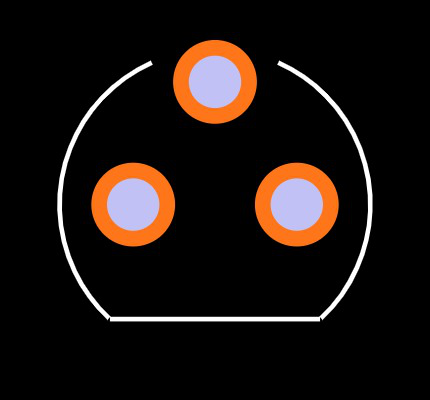

Footprint
No web preview
This Footprint is Available for

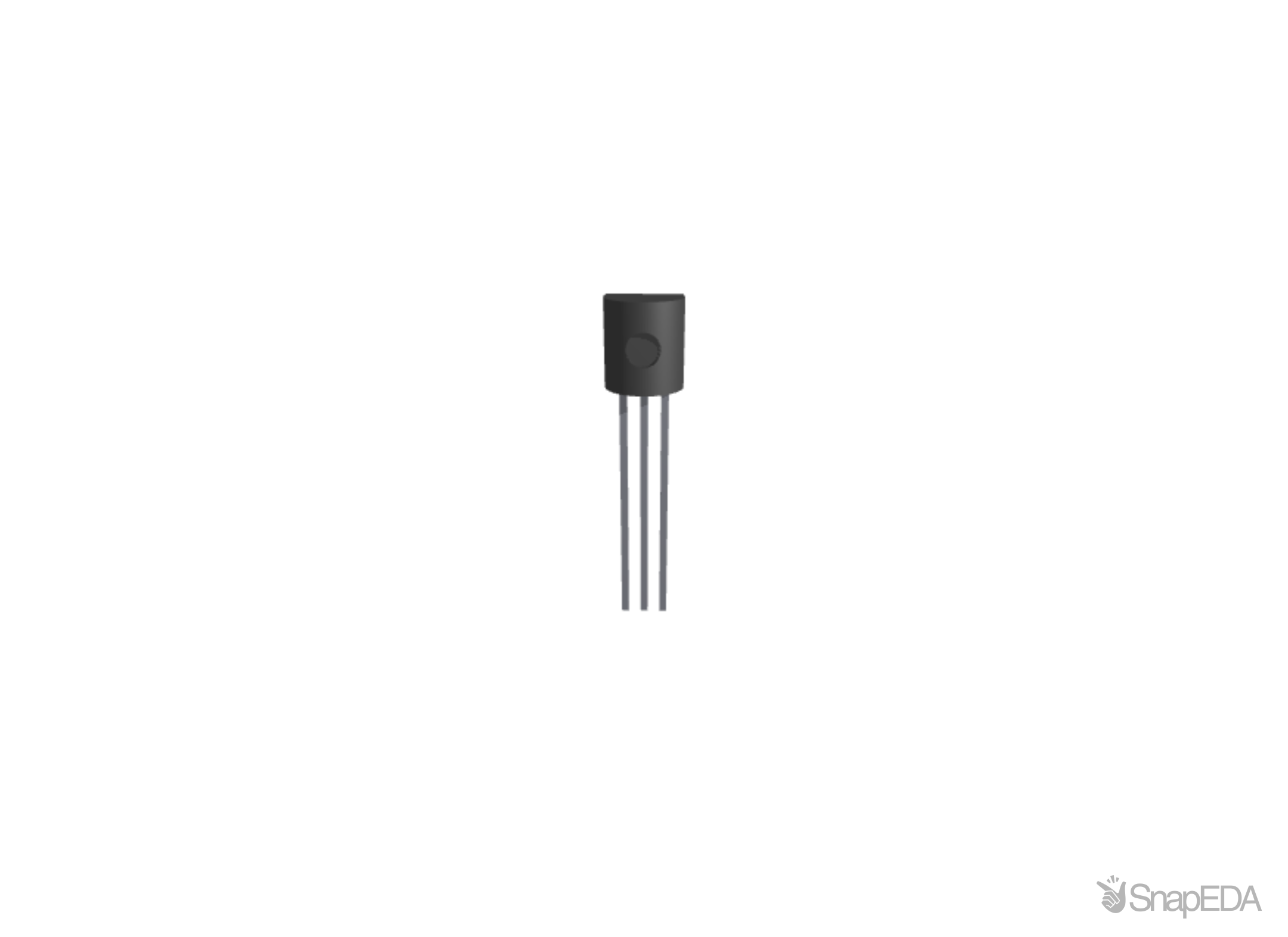

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BC327BU
| Part Name | BC327BU |
| Manufacturer | ON |
| RoHS | True |
| Life Cycle Status | End of Life |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transistor Type | PNP |
| Dimensions | 4.58 x 3.86 x 4.58 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 625 mW |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | -50 V |
| Maximum Operating Frequency | 20 MHz |
| Maximum Emitter Base Voltage (V) | -5 V |
| Package Type | TO-92 |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | -800 mA |
| Maximum Collector Base Voltage (V) | -10 V |
| Pin Count | 3 |
| Transistor Configuration | Single |
