BC558
Bipolar (BJT) Transistor PNP 30 V 100 mA 360MHz 625 mW Through Hole TO-92 (TO-226)
Availability: Out of Stock
Package Type: TO-226-3
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BC558 by Onsemi and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

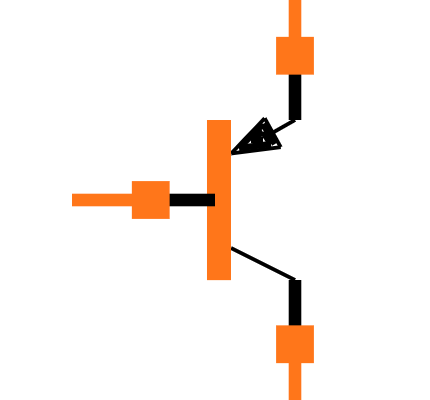

Symbol
No web preview
This Symbol is Available for

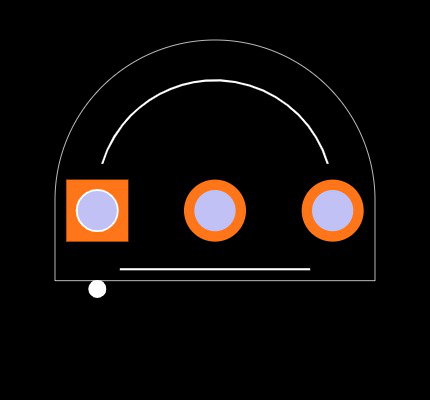

Footprint
No web preview
This Footprint is Available for

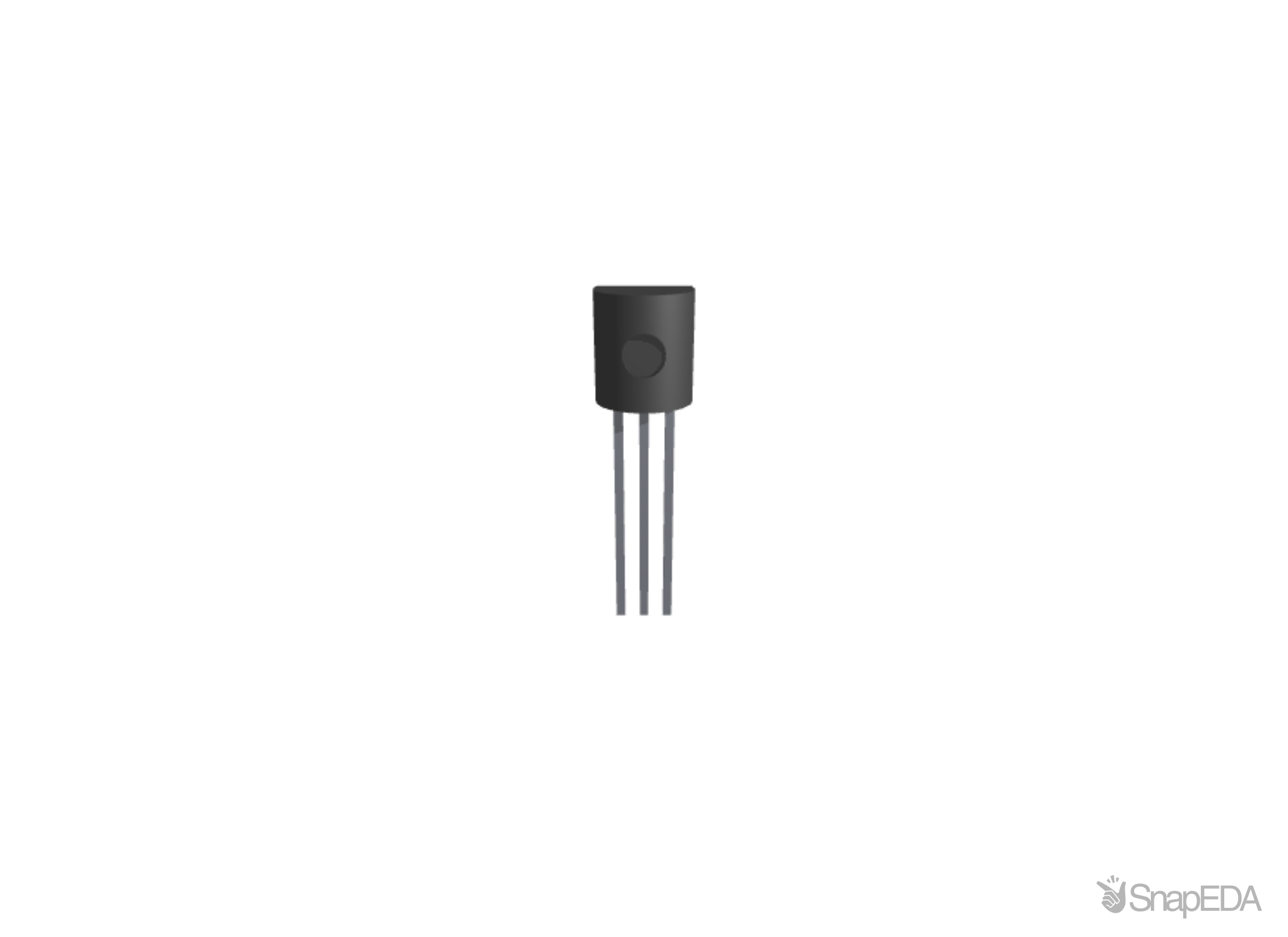

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BC558
| Part Name | BC558 |
| Manufacturer | ON |
| RoHS | True |
| Life Cycle Status | Obsolete |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transistor Type | PNP |
| Dimensions | 5.2 x 4.19 x 5.33 (mm) |
| Mounting Type | Through Hole |
| Maximum Power Dissipation | 500 mW |
| Maximum Collector Emitter Voltage (V) | 30 V |
| Maximum Operating Frequency | 10 MHz |
| Maximum Emitter Base Voltage (V) | -5 V |
| Package Type | TO-92 |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 100 mA |
| Maximum Collector Base Voltage (V) | -30 V |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
No issues have been reported for the BC558
If you experienced any issues with the symbol or footprint, please report it.
