BC817-40 RF
SOT-23, 50V, 0.5A, NPN Transistor
Availability: Out of Stock
Package Type: SOT-23
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BC817-40 RF by taiwan and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates

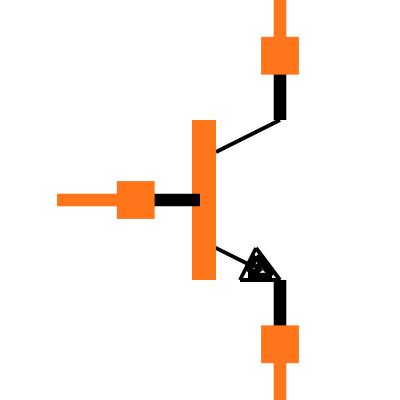

Symbol
No web preview
This Symbol is Available for

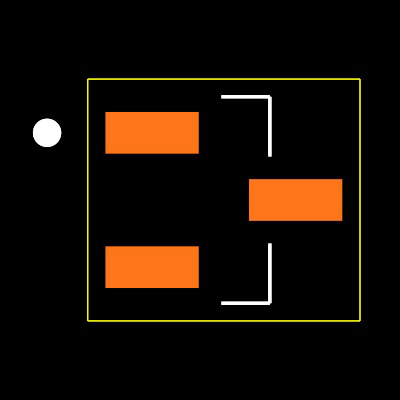

Footprint
No web preview
This Footprint is Available for

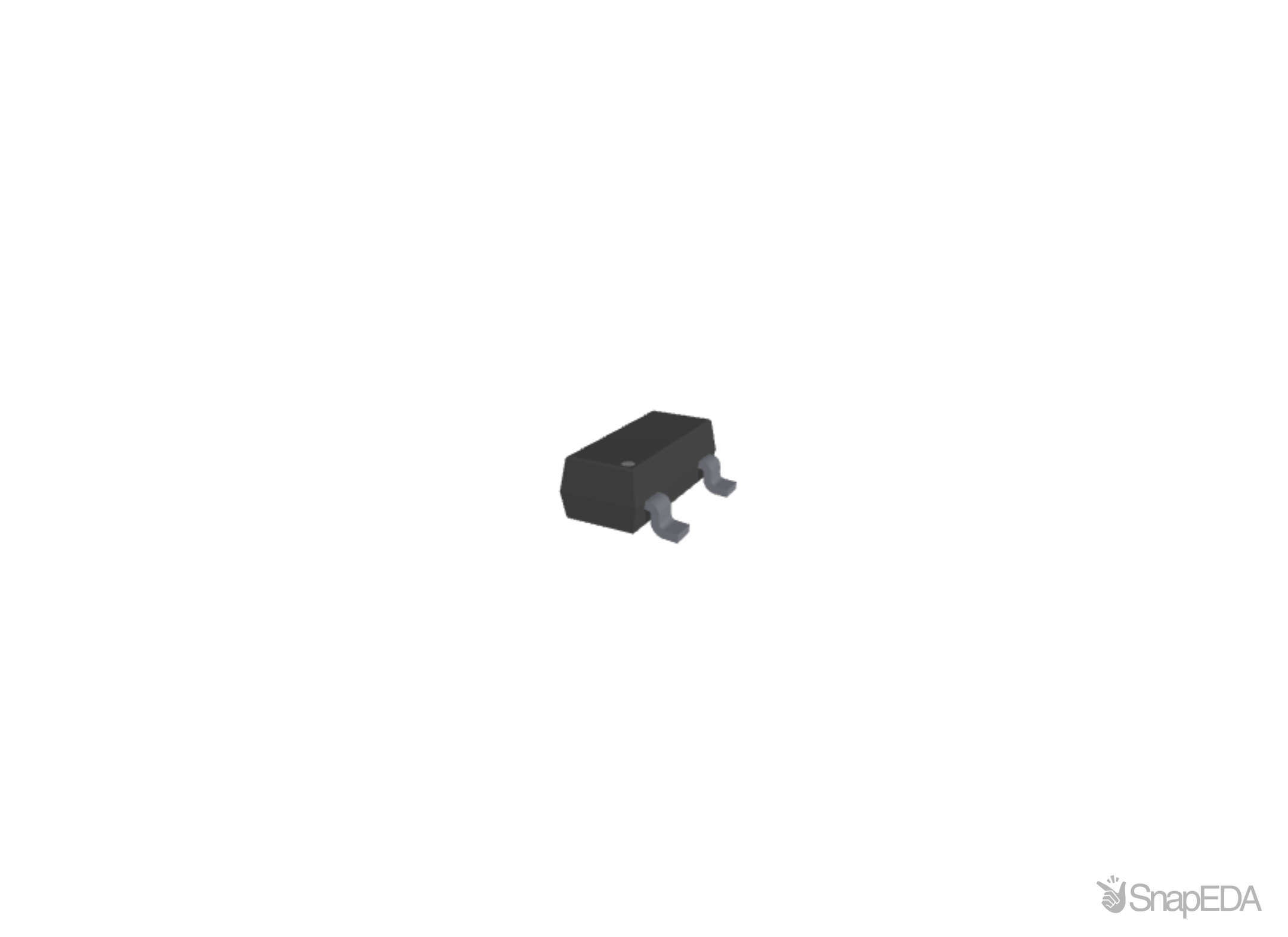

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BC817-40 RF
| Part Name | BC817-40 RF |
| Manufacturer | Taiwan Semiconductor |
| Life Cycle Status | Verify Status with Factory |
| RoHS | True |
| Family | Planar |
| Package | SOT-23 |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Dc Current Gain (A) | 250 |
| Transistor Type | NPN |
| Dimensions | 3 x 1.4 x 1.2 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 300 mW |
| Maximum Collector Emitter Voltage (V) | 45 V |
| Maximum Emitter Base Voltage (V) | 5 V |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 500 mA |
| Maximum Collector Base Voltage (V) | 50 V |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Transistor Configuration | Single |
