BCM856BS,115
Bipolar (BJT) Transistor Array 2 PNP (Dual) Matched Pair 65V 100mA 175MHz 300mW Surface Mount 6-TSSOP
Availability: In Stock
Package Type: TSSOP6-6
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BCM856BS,115 by Nexperia and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.
- Symbol and Footprint
- 3D Model
- Alternates
Symbol
No web preview
This Symbol is Available for

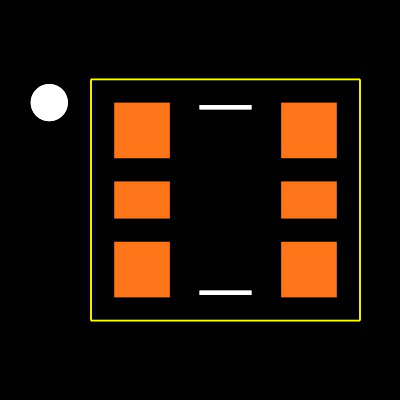

Footprint
No web preview
This Footprint is Available for

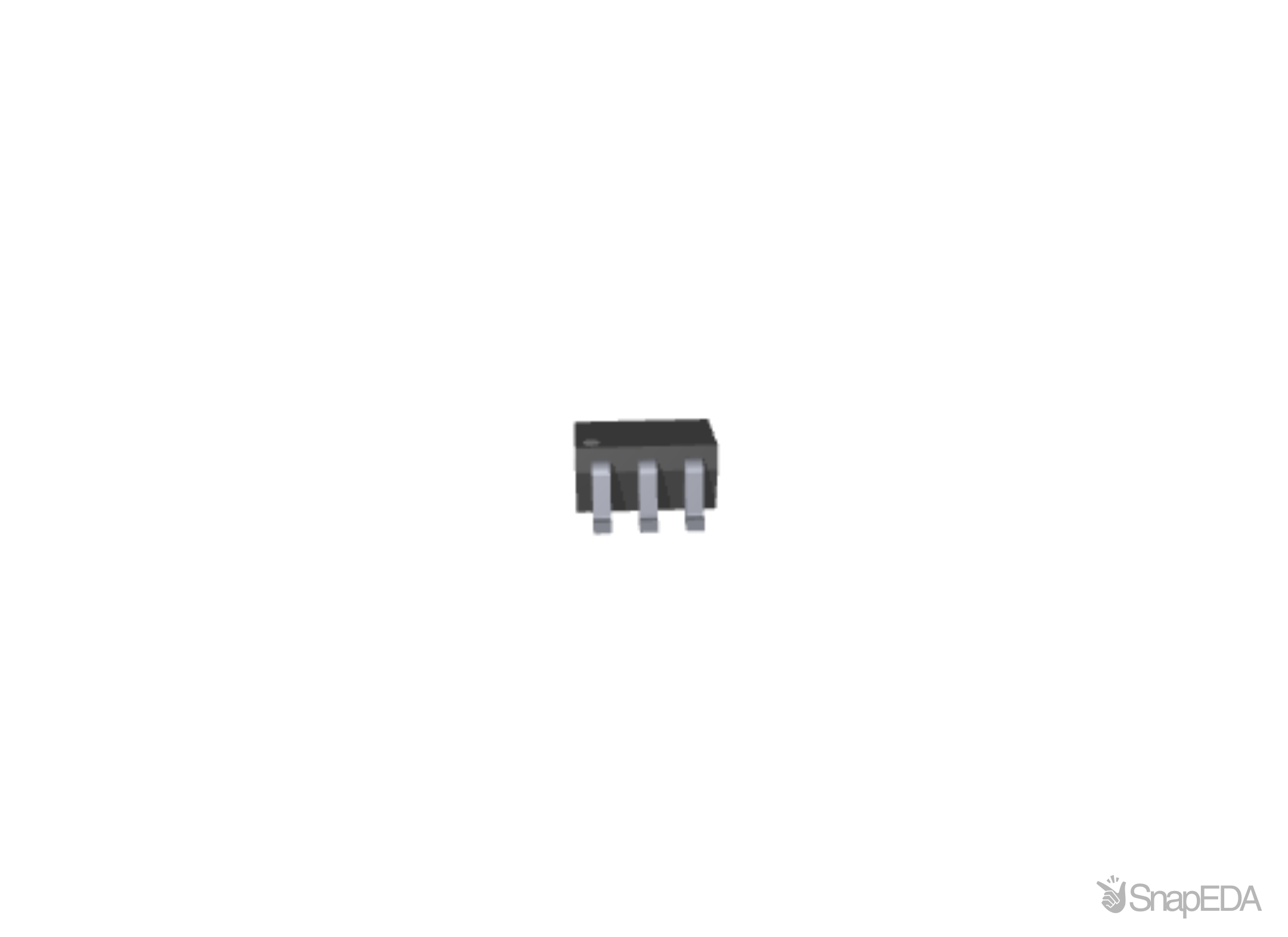

3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BCM856BS,115
| Part Name | BCM856BS,115 |
| Manufacturer | Nexperia USA |
| RoHS | True |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Minimum Dc Current Gain (A) | 200 |
| Transistor Type | PNP |
| Dimensions | 3 x 1.4 x 1.1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Power Dissipation | 200 mW |
| Maximum Operating Temperature | +150 °C |
| Maximum Collector Emitter Voltage (V) | -65 V |
| Maximum Operating Frequency | 175 MHz |
| Maximum Emitter Base Voltage (V) | -5 V |
| Package Type | SOT-363 (SC-88) |
| Number Of Elements Per Chip | 2 |
| Maximum Dc Collector Current (A) | -100 mA |
| Maximum Collector Base Voltage (V) | -80 V |
| Pin Count | 6 |
| Transistor Configuration | Isolated |
