BCR135
Pre-Biased Bipolar Transistor (BJT) NPN - Pre-Biased 50 V 100 mA 150 MHz 200 mW Surface Mount PG-SOT23
Availability: Out of Stock
Package Type: SOT-23
CAD Models: Symbol, Footprint, 3D Model
What is SnapMagic Search?
SnapMagic Search is a free library of symbols & footprints for the BCR135 by Infineon and for millions of electronic components.
Compatible with Eagle, Altium, Cadence OrCad & Allegro, KiCad, & more.
Discover parts from Texas Instruments, Microchip, TE Connectivity, Vishay & more.

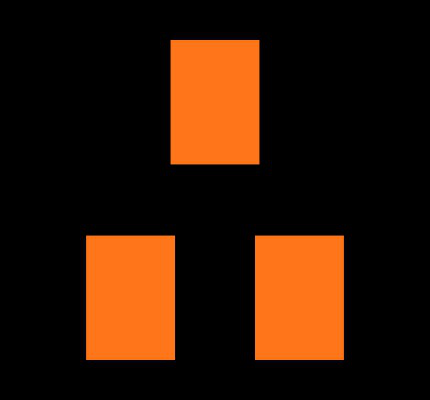

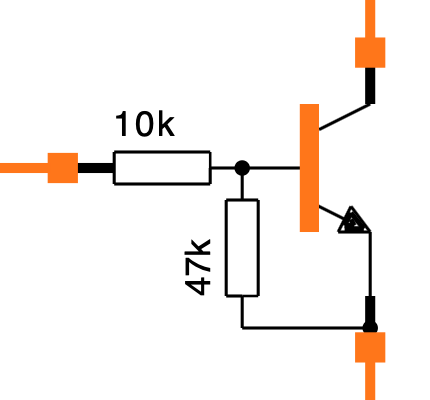

- Symbol and Footprint
- 3D Model
3D Model
Preview not available
Note: If you're using IE or Edge, right-click and choose "Save as" to download.
Get this 3D Model in 1 business day!
More
| Verification | Issues | Specs | Pricing |
Specifications for the BCR135
| Part Name | BCR135 |
| Manufacturer | Infineon Technologies |
| RoHS | True |
| Life Cycle Status | Restricted Availability |
| Formats Available for Symbols and Footprints |
Altium, Eagle, KiCAD, Cadence OrCad/Allegro, PADS, DxDesigner, PCB123, Pulsonix, Proteus |
| Datasheet | See Datasheet PDF |
| Transistor Type | NPN |
| Dimensions | 2.9 x 1.3 x 1 (mm) |
| Mounting Type | Surface Mount |
| Maximum Collector Emitter Voltage (V) | 50 V |
| Package Type | SOT-23 |
| Number Of Elements Per Chip | 1 |
| Maximum Dc Collector Current (A) | 100 mA |
| Typical Resistor Ratio | 0.21 |
| Transistor Configuration | Single |
| Maximum Operating Temperature | +150 °C |
| Pin Count | 3 |
| Typical Input Resistor | 10 kΩ |
